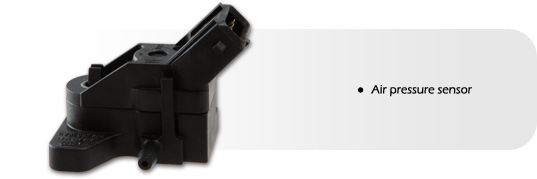

Air Pressure Sensor
Description
High accuracy, temperature compensated, Bosch manufactured air pressure sensor. This sensor is designed for mounting on a horizontal surface of the vehicle’s intake manifold.
Technical Data
| Min. Typ. Max. |
Pressure range (bar, absolute) | 0 - 2.5 |
Operating temperature (°C) | -40 - +125 |
Supply voltage (V) | 4.5 5.0 5.5 |
Output voltage (V) | 0.5 - 4.5 |
Current consumption at Uv=5V (mA) | 6.0 9.0 12.5 |
Load current at output (mA) | -1.0 - 0.5 |
Response time (ms) | - 1.0 - |
Accuracy (%FSD) | +/-1.5% |
Limit data |
|
Supply voltage (V) | - - +16 |
Storage temperature (°C) | -40 - +130 |
For further information on the air temperature sensor please visit our Knowledge Base here
