VIDEO4 composite video cameras

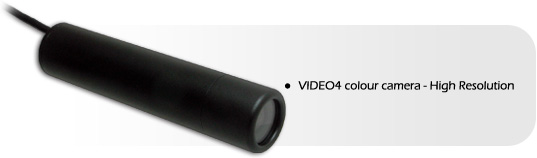

 High Resolution Camera £159.00 + VAT

The VIDEO4 can use up to 4 composite video cameras to record video from. With a resolution of 540+ TV lines and using a 1/3" Sony Super-HAD colour CCD combined with the excellent Sony HQ1 chipset, the high resolution camera is ideally suited to capturing the main D1 resolution video. The Super-HAD CCD used in the camera is designed to allow more light to pass to each pixel, giving increased sensitivity and reducing noise. Cameras are supplied ready to fit to our VIDEO4 system, with a 2.0m long cable and VIDEO4 specific connectors.
The high resolution camera comes shipped as standard with a 6 mm (53° angle) lens

The high resolution camera is housed in an IP67 sealed robust aluminium enclosure. The camera measures 21mm (Diameter) by 90mm, and features a 1/4" -20 standard tripod mounting thread for compatibility with our suction mounts.

 Standard Resolution Camera £109.00 + VAT

The VIDEO4 can use up to 4 composite video cameras to record video from. With a resolution of 420 TV lines and using a 1/3" Sony Super-HAD colour CCD combined with the excellent Sony HQ1 chipset, the standard resolution camera is ideally suited to capturing the additional picture in picture scaled videos (because the PIP videos are scaled down, a higher resolution camera does not offer any benefit). The Super-HAD CCD used in the camera is designed to allow more light to pass to each pixel, giving increased sensitivity and reducing noise. Cameras are supplied ready to fit to our VIDEO4 system, with a 2.5m long cable and VIDEO4 specific connectors.
The standard resolution camera comes shipped with a 3.6mm (90°) lens.

The standard resolution camera is housed in an IP67 sealed robust aluminium enclosure. The camera measures 20mm (Diameter) by 78mm, and features a 1/4" -20 standard tripod mounting thread for compatibility with our suction mounts.

Camera Extension Cable 2m £25.00 + VAT

Camera Extension Cable 3m £35.00 + VAT

Camera extension cables are available to give an extra 2m or 3m (if the standard 2.5m camera cable in not sufficient). The cables come cut to length and ready fitted with VIDEO4 specific connectors.

Alternative Camera Lenses £15.00 + VAT each

For those that require either a wider or narrower camera angle there are several options available.
