DASH3 Configuration Software

The DASH3 Configuration software allows you to configure the display unit according to your own needs. It supports both versions of DASH3, however it should be noted that the more versatile standard DASH3 is more configurable then the DASH3lite.

• Standard DASH3

• DASH3Lite

The software can be used to set up multiple screens displaying different variables. These screens can be scrolled through using the keypad on the unit, or can be set to switch depending on a variables value. Upper and lower limits can be assigned to variables, and when these limits are exceeded the screen can be set to switch to monitor the relevant variables. Lap and sector screens can be set to appear at the completion of a lap or sector.

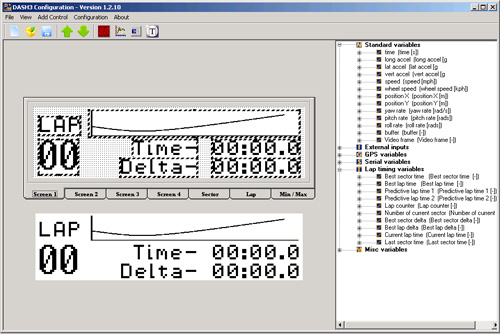

The software has a design area where sizes, positions, and variables can be changed. The preview area below neatly displays the result without the grid and guide boxes.

The variable tree to the right of the screen offers a simple drag and drop way of assigning variables to the displayed control. The variable tree easily enables changes to units and more advanced optimisation including smoothing of the data, alarms, and maximum rate of change.

All our software is available as a single download which includes all programs and the documentation. This is available for free download here.
