Description

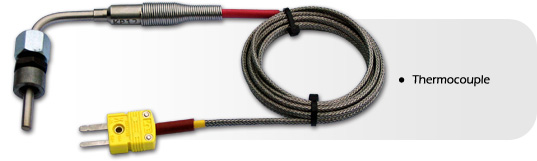

Type K BS4937 colour coded, Mineral insulated, stainless steel sheathed thermocouple suitable for applications up to 1100°C.
The probes can be bent to enable fitting in awkward locations and being very reliable and stable, are ideal for exhaust gas temperature and other autosport applications

The thermocouple junction is located at the tip and insulated from the sheath. Available in 1.5mm and 3.0mm diameters and 150mm and 250mm lengths. Extension cable available up to 4m.

For further information on the thermocouple please visit our Knowledge Base here

Technical Data

Sheath Material	310 Stainless Steel
Temperature Range	-40°C to 1100°C
Pot Seal	M8x1.00mm thread L=25
Pot Temperature	200°C Max
Leads	PTFE insulated 7/0.2mm, L=100

Add to basket (GBP 22.00)

Available Variations

Available Add-ons

Note: all prices are exclusive of VAT at 17.5%
