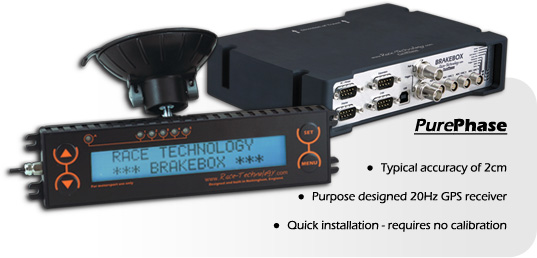

BRAKEBOX Specifications

• External power supply requirements: 10-15V (12V nominal). Current consumption is approximately 450mA.
• Case construction: CNC machined aluminium, black anodised.
• Connector type: 1 x Binder 324 Series 12-way male bulkhead connector, 2 x SMA female bulkhead connectors.
• Main processor: High performance 200MHz TI DSP.
• GPS antenna: Magnetic base, 3.3V active antenna with male SMA connector.
• GPS receiver: Calculates position, altitude, speed, distance, heading, positional accuracy, speed accuracy and heading accuracy 20 times a second. Tracks all satellites in view.
