What is the BRAKEBOX?

The BRAKEBOX is a self contained and exceptionally accurate system for measuring braking distances of cars, bikes and trains, using the very latest GPS technology with a typical accuracy of 2cm . The BRAKEBOX needs no connections to the vehicle and so can be fitted and working in seconds. The system requires no calibration, and is engineered to very high standards, ensuring long reliable service in demanding industrial environments.

The BRAKEBOX can be configured to measure all the standard parameters for industrial brake tests. The unit can measure and display tables of stopping distance (speed, time, distance), the deviation from the braking line, average decelerations and many other parameters of interest for braking distance tests. The results can be viewed on the in-vehicle display, printed out or stored in internal memory. Optionally the results can be downloaded and analysed on the PC or recalled on the unit itself.

The BRAKEBOX is based on Race Technology's own 20Hz GPS receiver, this GPS receiver is not a general purpose "survey" or "military" receiver, but a receiver purpose designed for automotive testing. When used in automotive test applications, the performance of the Race Technology GPS receiver is simply the best available at any cost.

Who is the BRAKEBOX designed for?

The BRAKEBOX is designed for any companies or individuals requiring accurate braking distances. Typical applications include:

• Tyre testing
• Braking system testing (including ABS)
• Suspension and chassis development
• Road surface testing
• Accident investigation

The unit can be fitted to cars, bikes, trains or boats. With its simple user interface the BRAKEBOX can be used by engineers and technicians alike. The BRAKEBOX is a superior replacement for 5th wheel installations, optical sensors and GPS based systems from other manufacturers.

What does the BRAKEBOX do?

Immediately after a test the following results are available:

• Total braking distance
• Total braking time
• Average braking deceleration

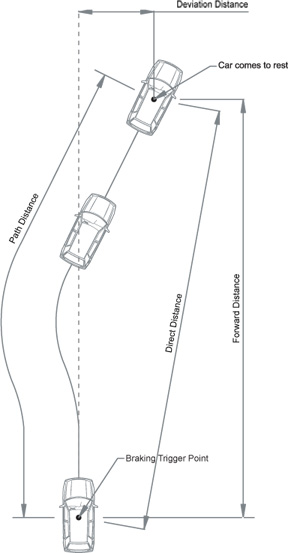

As well as:

• Braking distance in the forward direction
• Distance deviated from the braking centre line
• The straight line distance from the start of braking to where the vehicle came to rest.

Depending on the application some of these measurements can be disabled for clarity if required.

BRAKEBOX standard features

• Typical braking distance accuracy of 2cm. Industry leading performance based on the very best GPS technology available.
• Simple, intuitive user interface. The system has a very simple menu driven interface meaning that an absolute minimum of training is required to use the system.
• Optional printer output. As soon as the test is completed the results can be viewed on the screen and printed to an optional serial printer if a hardcopy is required.
• Upgradeable firmware. The firmware of the BRAKEBOX is flash-upgradeable through the serial port of a PC.
• Software and documentation. The BRAKEBOX is supplied with a comprehensive software CD providing full instructions for installation, configuration, use and output data processing.

Download the BRAKEBOX data sheet in PDF format

For details and purchase inquiries please email us at sales@race-technology.com
