DL1 SPORT - Develop your driving with this simple to set up and expandable GPS data logger

The DL1 SPORT, our entry level performance data logger.

The DL1 SPORT is our entry level unit, perfect for new users and those wanting an easy to use system. It is also the ideal tool for users wanting to improve their driving at races and track days. Very simple to set up and use with user friendly simplified configuration software, but still using high quality and proven hardware such as the 5Hz GPS system and digital accelerometer. The logger is expandable with a range of analogue sensors and ECU interfaces, and can also be connected directly to any of our range of dash boards and video systems. The data from the DL1 SPORT can be loaded directly into Race Technology's widely acclaimed data analysis software to check lap times, check where time was lost and gained, and how improvements could be made using our unique simulation tool.






A DL1 SPORT system is very simple to setup and get started. With essential information coming from just the internal GPS and accelerometers, and room for expansion with analogue sensors and ECU interfaces. Simple set up, professional data.

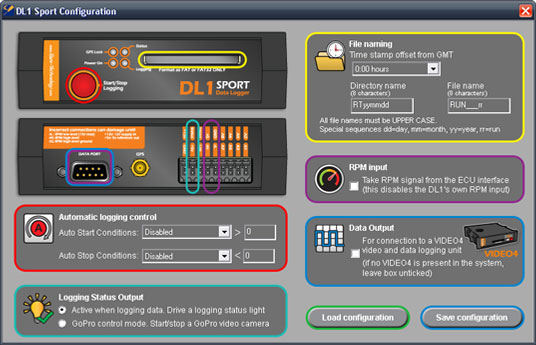

Simple to set up with the new user friendly configuration software

Why choose a DL1 SPORT data logger?

What our GPS data loggers do is more than just collect the data, they allow all the data to be referenced to not just time, but a position on the track. This allows you to interpret the data in a meaningful and understandable way, referenced clearly to the real world: Pick a corner and see how you braked, how much grip you used and where, then how you exited. Compare what you did on your fastest time through the sector and learn where you can go faster.

  • Review your braking points and grip usage with the built in 2g 3-axis. accelerometer (optional 6g enhancement available for high downforce applications).
  • Capable of detecting minute changes with 100Hz update rate on all sensor and accelerometer channels - 8 analogue sensor inputs ready for additional sensors.
  • Lap and sector timing, in the software, or live with a DASH2, DASH3, or DASH4 PRO display.
  • Get the most out of your engine by logging information from your ECU*
  • Optional GoPro control + video licence for synchronised HD video and data:

*ECU adapters sold separately, see list of compatible ECU's. OBD also available.

Click here to watch a video of the Analysis Software


If you need some advice on what you need to start building your data system, visit our New to Data logging page.


If you want to know the basics of how to analyse the data you record, please visit the Data logging basics page.

For those interested in GPS accuracy we did a comparison test using a GPS receiver used by one of our competitors, a survey grade receiver and the DL1 receiver. Click here for the results.

DL1 SPORT enhancement option:



DL16g







Main Product (GBP 499.00)

Available Variations
DL1 SPORT + 6g Accelerometer (DL1SPORT + DL16GUPGRADE) (GBP 578.00)
Available Add-ons
2.0GB Compact Flash Card (CF2GB) (GBP 20.00)
CF Card Reader (CFREADER) (GBP 20.00)
DL1 external battery pack + charger (DL1BATTERY) (GBP 50.00)
DL1 Mains Power Supply (European round 2 pin) (MAINS12VEUROPE) (GBP 25.00)
DL1 Mains Power Supply (UK 3 pin type) (MAINS12VUK) (GBP 25.00)
DL1 Mains Power Supply (US flat 2 pin) (MAINS12VUS) (GBP 25.00)
DL1 SPORT 12V power lead (DL1SPORTPWRCAB) (GBP 20.00)
External start/stop button and indicator (STARTSTOP) (GBP 35.00)
GPS antenna - magnetic mount 1m cable (GPSANT1M) (GBP 35.00)
GPS antenna - magnetic mount 3m cable (GPSANT3M) (GBP 35.00)
GPS antenna - magnetic mount 5m cable (GPSANT5M) (GBP 35.00)
RPM pickup lead (2m long aprox) (RPM2M) (GBP 18.00)
RPM pickup lead (3m long aprox) (RPM3M) (GBP 18.00)
Spare serial download cable (SERIALNULLMODEM) (GBP 10.00)
USB to serial adapter (USBSERIAL) (GBP 30.00)
* Main product required


Note: all prices are exclusive of VAT at 20.0%
