Fuel Flow Sensor

Description
A compact plastic-bodied fuel flow sensor that produces a pulse output, the frequency of which is proportional to the fuel flow rate through the device.

Note: The formation of vapour in side the fuel flow sensor should be minimised by installing between the fuel pump and carburettor, but before any pressure regulator. The device should be mounted vertically if vapour is likely to form. Extreme care must be taken when modifying the fuel supply circuit.

Connections are provided for both 8 and 12mm diameter hoses. The unit is reliable and accurate. Low and high flow rate options possible using the supplied flow restrictor.

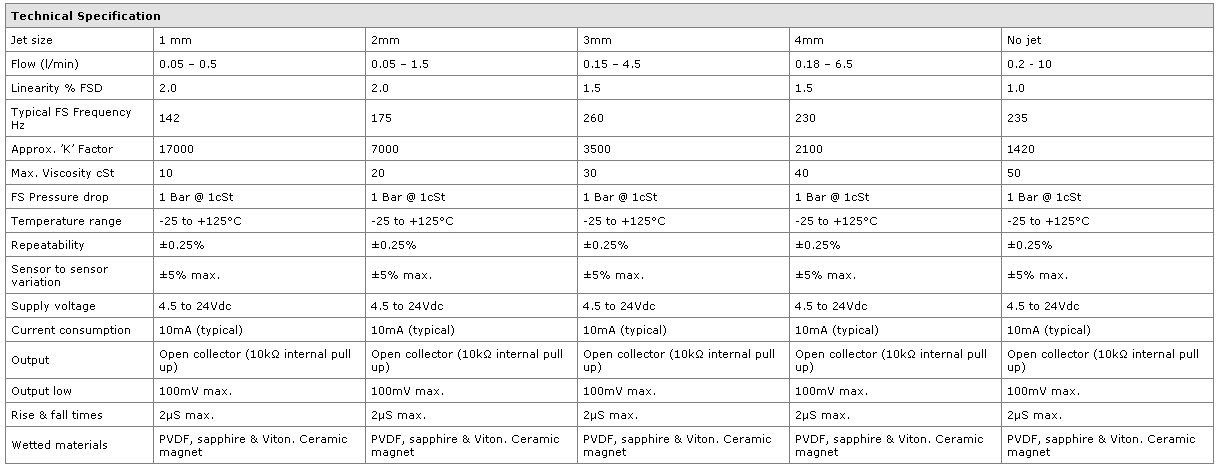

Technical data

For further information on the fuel flow sensor please visit our Knowledge Base here

Main Product (GBP 130.00)


Available Add-ons
Cable length - 1m (CABLE 1M) (GBP 5.00)
Cable length - 2m (CABLE 2M) (GBP 9.50)
Cable length - 3m (CABLE 3M) (GBP 14.00)
Cable length - 4m (CABLE 4M) (GBP 18.50)
Cable length - 5m (CABLE 5M) (GBP 23.00)







* Main product required

Note: all prices are exclusive of VAT at 20.0%
