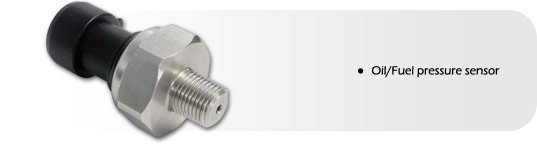

Oil/Fuel Pressure Sensor

FuelOilpressure

Description
High quality, all stainless steel, media isolated oil pressure sensor. The high strength construction contains no silicone oil and no internal ‘O’ rings. It offers high accuracy, excellent long-term stability, trouble free operation, long life and high performance.


Technical Data

Accuracy @ 25°C <±1% FSD
Stability (1 year) <±0.1%
Overange pressure 2x rated pressure
Burst pressure 5x rated pressure
Pressure cycles >10 million
Operating temperature -40 to +125°C
Output voltage 0.5V to 4.5V
Supply voltage +5V
Bandwidth 1kHz
Overall length 44mm
Overall diameter

22mm across flats

Pressure port thread 1/8" NPT male
Pressure range 0-10 bar gauge



For further information on the oil/fuel pressure sensor please visit our Knowledge Base here

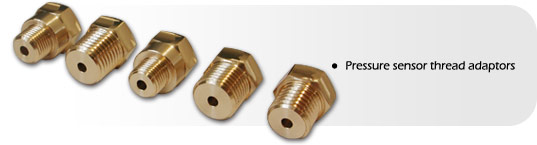

Pressure_adaptors

A range of thread adaptors are available to fit these pressure sensors. The adaptors are available with the following male threads:

  • G 1/4"
  • 1/4" NPT
  • 1/8" BSPT
  • 3/8 x 24 UNF
  • M12 x 1.5
  • M10 x 1
When purchased with the Oil/fuel pressure sensor the relevant adaptor can be supplied free of charge. They are also available for individual purchase here.




Main Product (GBP 95.00)
Available Add-ons
Cable length - 1m (CABLE 1M) (GBP 5.00)
Cable length - 2m (CABLE 2M) (GBP 9.50)
Cable length - 3m (CABLE 3M) (GBP 14.00)
Cable length - 4m (CABLE 4M) (GBP 18.50)
Cable length - 5m (CABLE 5M) (GBP 23.00)
Individual calibration with printed test sheet (FUEL/OILCAL) (GBP 15.00)

* - Main product required.

Note: all prices are exclusive of VAT at 20.0%.
