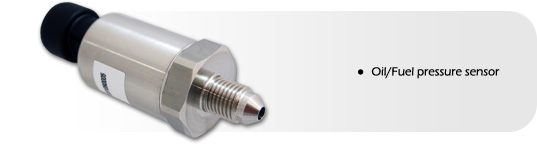

Oil/Fuel Pressure Sensor
Description
High quality, all stainless steel, media isolated oil pressure sensor. The high strength construction contains no silicone oil and no internal ‘O’ rings. It offers high accuracy, excellent long-term stability, trouble free operation, long life and high performance. Threaded end is a male AN -3 fitting on main version, see variations for 1/8" NPT.
Technical Data
| Accuracy @ 25°C | <±0.5% |
| Stability (1 year) | <±0.1% |
| Overange pressure | 2x rated pressure |
| Burst pressure | 5x rated pressure |
| Pressure cycles | >10 million |
| Operating temperature | -40 to +125°C |
| Output voltage | 0.5V to 4.5V |
| Supply voltage | +5V |
| Bandwidth | 1kHz |
| Overall length | 66mm |
| Overall diameter | 22mm |
| Pressure port thread | 3/8" x 24 UNF male AN -3 or 1/8" NPT |
| Pressure range | 0-10 bar gauge |
"Main Product" is AN -3 version, see Variations for NPT version
