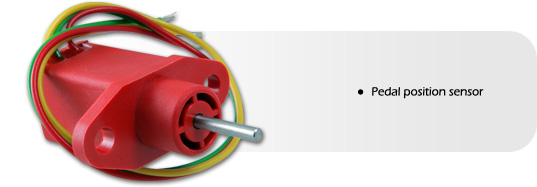

Pedal Position Sensor

Pedalposition

Description
An economical, short stroke linear position sensor ideal for use in detecting pedal position. Glass reinforced nylon body with 10mm electrical stroke and spring loaded plunger.

Technical Data

Resistance	5 kohm linear (±20%)
Linearity	±2%
Temperature coefficient	0 to 200 ppm/°C
Output smoothness	0.5% max
Operating temperature	-40 to +130°C
Mechanical travel	12.5mm
Operating force	2 to 7.5N
Mechanical life	5 x 10⁶ cycles

For further information on the pedal position sensor please visit our Knowledge Base here

Main Product (GBP 30.00)


Available Add-ons
Cable length - 1m (CABLE 1M) (GBP 5.00)
Cable length - 2m (CABLE 2M) (GBP 9.50)
Cable length - 3m (CABLE 3M) (GBP 14.00)
Cable length - 4m (CABLE 4M) (GBP 18.50)
Cable length - 5m (CABLE 5M) (GBP 23.00)







* Main product required

Note: all prices are exclusive of VAT at 20.0%
