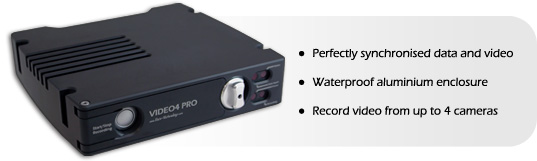

VIDEO4 PRO

Description

» Specification

What's in the box

FAQ

DL1 PRO

DL2

IMU06

DASH4 PRO

Sensors

Accessories

Construction

Custom designed IP67 sealed aluminium enclosure. Featuring hinged door, sealing removable memory card, and custom latch.

Video inputs (electrical)

Standard composite video 1v p-p, Either PAL or NTSC

Video encoding standard

MPEG2, constant bit rate. Frame format, GOP length of 15, IP and B frames

Audio inputs (electrical)

Microphone level with AGC and standard line level inputs 0.7v p-p

Audio encoding standard

MP2 layer 2

Memory

Removable compact flash card, formatted as FAT32. Most high speed types are compatible

Status indicators

LEDs on the front panel to indicate, power supply okay, incoming serial data available, currently recording video and GPS status.

Processor

900MHz, 64bit DSP, 128M DDR2 RAM

Data port

RS232 levels, upto 5 Mbit - compatible with all current Race Technology hardware

Power supply requirements

9v to 15v nominal input. Power consumption approximately 12W
