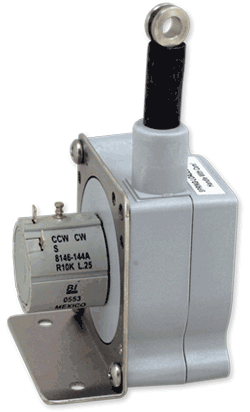

Steering Angle Sensor
Description
A high quality "string extension potentiometer" that senses the distance the wire is pulled from the sensor body. Ideal for sensing steering angle. With relatively non-critical alignment requirements, compact size, and ease of installation wire rope actuated transducers are the linear measurement system of choice.
Technical Data
| Input impedance | 1000 ohms ±10% |
| Excitation voltage | 25 Volts max. AC or DC |
| Output impedance | 0 to 1000 ohms |
| Linearity: ranges to 120mm | ±1.0% Full scale |
| 254mm to 635mm | ±0.5% Full scale |
| 762mm to 1270mm | ±0.25% Full scale |
| Operating temperature | -15°C to +60°C |
For further information on the steering angle sensor please visit our Knowledge Base here
