1. AX22 Connector Details
"Warning: To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there are no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage."

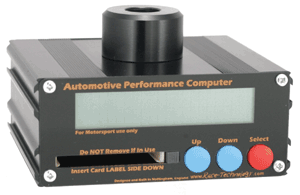

1.1 Front View

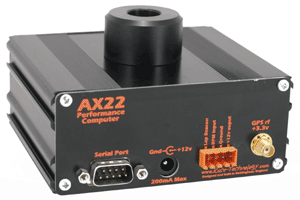

1.2 Rear View
| PIN | DESCRIPTION |
|---|
| 1 | N/C |
| 2 | RX - Main Data In |
| 3 | TX - Main Data Out |
| 4 | TX - GPS Data Out |
| 5 | GND |
| 6 | RX GPS Data In |
| 7 | +12v Out |
| 8 | N/C |
| 9 | N/C |
| LABEL | DESCRIPTION |
|---|
| Lap Beacon | |
| RPM Input | 5-15v Trigger - ECU or Tacho Use |
| Ground | |
| +12V Output | |
| GPS RF +3.3v | GPS Antenna Connection (3.3v) |
| +12v Power In | 200mA Maximum I/P |
| Power Ground | |
|
