Description of Operation

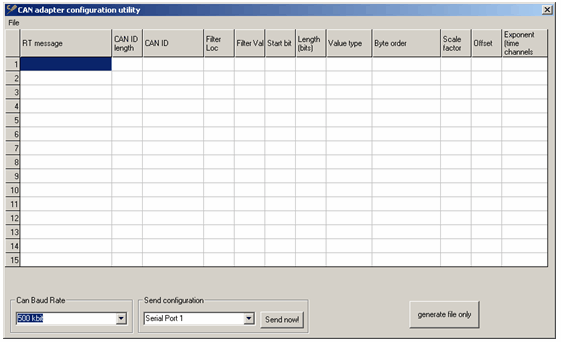

The configuration of the interface module is performed using the CAN configuration software, which is a standard part of the Race Technology V7 software installation. This can be found in the configuration section of the installation. When started, the CAN Configuration software will look like this:

RT message

These are the available output messages. All output messages must be scaled for a value from 0-65535 for unsigned and -32768 to 32767 for signed values. Output messages are split in to the following groups

        Temperatures  (25 channels)            Time  (12 channels)
        Percentages (31 channels)                Frequencies  (4 channels)

With the exception of the time channels, all channels are of exactly the same data format, so can easily be used for any other function.

CAN ID length

There are two CAN addressing modes in common use; 11bit and 29bit addressing. This field must be set to the same type of addressing mode as the messages to be decoded are using. If the addressing modes do not match, messages will not be decoded, even if the address is otherwise a match.

CAN ID

Selects the CAN ID which will be used to receive the message. This may be either a decimal value or a hexadecimal value. Hexadecimal values are specified using the prefix "0x". For example, the (hexadecimal) channel ID 500h may be entered as either 0x500 or 1280 in the CAN configuration software.

Filter location

It is possible to use one byte of the message as a filter, when a byte is selected for the filter location, only messages which have the correct filter value will be used.

Filter value

Used in conjunction with filter location to enable message reception only when the byte specified in filter location matches this value.

Start bit

The location of the first bit of the data to be received. Ranges from 0-63

Length

Total number of bits in the message, from 1-32

Value type

Select signed, unsigned or floating point. Floating point values are as defined in the IEEE754 Format,

Byte order

Select from the following byte orders:

         Intel Standard                            Motorola forward MSB
         Intel Sequential                          Motorola sequential
         Motorola forwared LSB                    Motorola backward

For more information on these formats, see the appendix Byte Ordering.

Scale factor

A factor by the output value will be divided before being sent out through the serial port

Offset

A value which is added to the output value before it is output (scale factor is applied before offset)

Loading and saving files

From the file menu you can select to load or save data files
