DASH3 / TypicalSystem

Typical system

Typically the DASH3 is designed to be used directly with the DL1 data logger. It can, however, also be used with a number of our other products, including the DL2 and SPEEDBOX. It can even be connected directly to an ECU interface to display ECU parameters only.

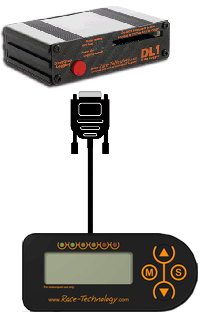

Data logger and DASH3:

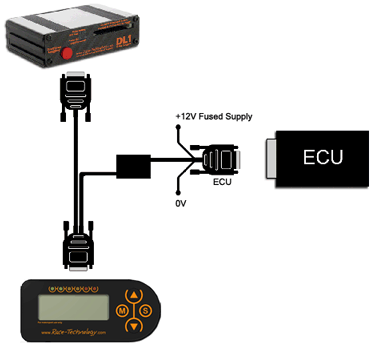

Data logger, DASH3 and ECU Interface:

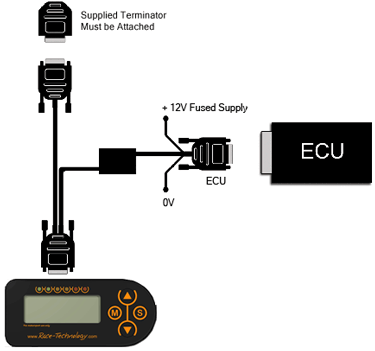

DASH3 and ECU Interface:


Note: If you intend to use the DASH3 as a standalone unit (i.e. without a Race Technology data logger or video recorder) connected to your ECU, you will also need to purchase the PC programming lead. This will allow configuration directly from your PC's serial port.
