DL1 / Connections

DL1 Connector details

Connections for DL1 Mk1 (For Mk2 See below)

Front Panel

PIN	DESCRIPTION
1	N/C
2	RX - Main Data In
3	TX - Main Data Out
4	TX - GPS Data Out
5	GND
6	RX GPS Data In
7	+12v Out ( 50 mA limit)
8	N/C
9	N/C

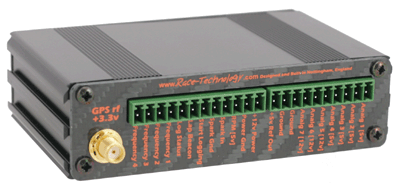

Rear Panel

"WARNING": To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there are no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage.

LABEL	DESCRIPTION
+12vPower
Power Gnd
RPM [5v]	5-15v Trigger - ECU or Tacho Use.
Spark In	1KHz HT Input - See Connecting RPM
Spark Gnd	See Connecting RPM
Start Logging	Active Low (Take to GND) - Toggles Logging ON/OFF
Lap Beacon
Log Status	50mA Max, Active High, indicates logging status	Out
Frequency 1	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 2	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 3	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 4	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
GPS RF +3.3v	GPS Antenna Connection (3.3v)
Analg 1	0-5v 16-Bit	In
Analg 2	0-5v 16-Bit	In
Analg 3	0-5v 16-Bit	In
Analg 4	0-5v 16-Bit	In
Analg 5	0-12v 16-Bit	In
Analg 6	0-12v 16-Bit	In
Analg 7	0-12v 16-Bit	In
GND
GND
+5v Ref Out	50mA Max	Out

Connections for DL1 Mk2 (For Mk1 See above)

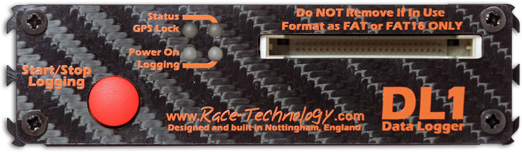

Front Panel

The Mk2 DL1 connections are all on the rear panel

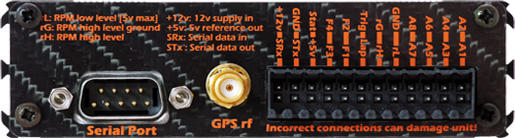

Rear Panel

"WARNING": To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there are no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage.

PIN	DESCRIPTION
1	N/C
2	RX - Main Data In
3	TX - Main Data Out
4	TX - GPS Data Out
5	GND
6	RX GPS Data In
7	+12v Out ( 50 mA limit)
8	N/C
9	N/C

LABEL	DESCRIPTION
Analg 1	0-12v 16-Bit	In
Analg 2	0-12v 16-Bit	In
Analg 3	0-12v 16-Bit	In
Analg 4	0-12v 16-Bit	In
Analg 5	0-12v 16-Bit	In
Analg 6	0-12v 16-Bit	In
Analg 7	0-12v 16-Bit	In
Analg 8	0-12v 16-Bit	In
rL - RPM Low Level	5-15v Trigger - ECU or Tacho Use.
GND
rH - RPM High Level	1KHz HT Input - See Connecting RPM
rG - RPM High Level Ground	See Connecting RPM
Lap	Lap Beacon
Trig	Active Low (Take to GND) - Toggles Logging ON/OFF
Frequency 1	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 2	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 3	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
Frequency 4	100KΩ Pull Down Included. 5-12V I/P 2KHz Max.	In
+5v Ref Out	50mA Max	Out
Stat	50mA Max, Active High, indicates logging status	Out
STx	Serial data out	out
Gnd
SRx	Serial data in	In
+12vPower
GPS RF +3.3v	GPS Antenna Connection (3.3v)

Identifying your unit

For information on identifying which version of the DL1 you have, click here.
