DL1PRO / Connections

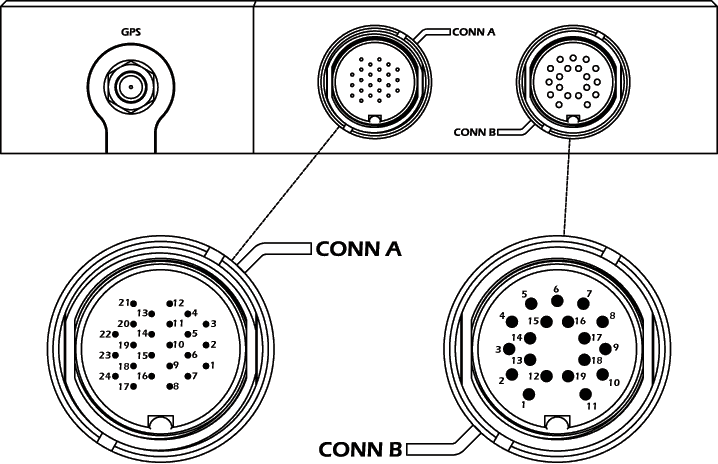

Connections

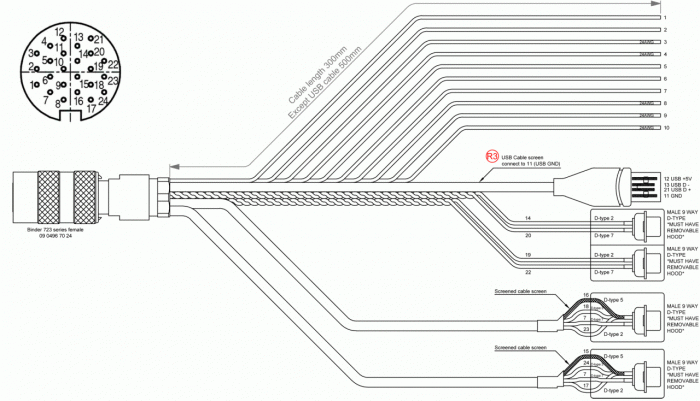

DL1 PRO 24 Way Cable

(Click to View Larger Image)

NOTE: USB lead not used on DL1 PRO. Use USB connector on front of DL1 PRO

24 way	Name	Description	Connector or wire colour
1	ADC7	0-25v 12 bit analogue input	white
2	ADC5	0-25v 12 bit analogue input	black
3	ADC10 Out2	0-25v input, low side output 0.5A	red-black
4	ADC 9 Out1	0-25v input, low side output 0.5A	gray
5	ADC6	0-25v 12 bit analogue input	blue
6	ADC8	0-25v 12 bit analogue input	green
7	12v	12v supply for serial peripherals	RS232-1-2 d-type plug pin 7
8	5v ref 2	0.5A reference output	brown
9	ADC12 Out4	0-25v input, low side output 0.5A	red
10	ADC11 Out3	0-25v input, low side output 0.5A	orange
11	GND	USB GND	Not connected
12	USB5V	USB 5v	Not connected
13	USB D-	USB Data -	Not connected
14	CAN1 L	CAN port 1 low	CAN[1] d-type plug pin 2
15	GND	Serial port 1 GND	RS232[1] d-type plug pin 5
16	GND	Serial port 2 GND	RS232[2] d-type plug pin 5
17	RS232 2 in	RS232 port 2 RX	RS232[2] d-type plug pin 2
18	RS232 1 out	RS232 port 1 TX	RS232[1] d-type plug pin 3
19	CAN2 L	CAN port 2 low	CAN[2] d-type plug pin 2
20	CAN1 H	CAN port 1 high	CAN[1] d-type plug pin 7
21	USB D+	USB Data +	Not connected
22	CAN 2 H	CAN port 2 high	CAN[2] d-type plug pin 7
23	RS232 1 in	RS232 port 1 Rx	RS232[1] d-type plug pin 2
24	RS232 2 out	RS232 port 2 Tx	RS232[2] d-type plug pin 3

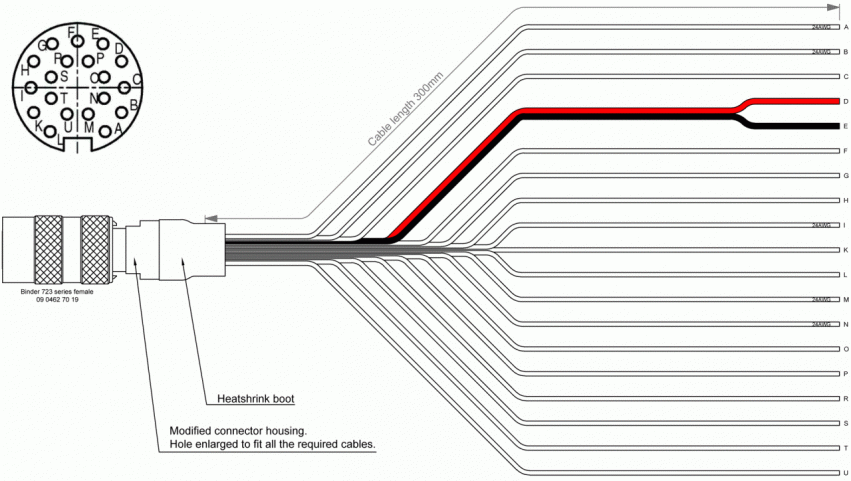

DL1 PRO 19 Way Cable

(Click to View Larger Image)

19 way	Name	Description	Connector or wire colour
A	ADC1	0-25v 12 bit analogue input	black
B	ADC2	0-25v 12 bit analogue input	brown-black
C	GND	Sensor ground	red-black
D	12v	System power 9-24v	figure-8 cable black-white
E	GND	Power ground	figure-8 cable black
F	High level RPM	1kHz HT input	orange-black
G	RPM_GND	See Connecting RPM	yellow-black
H	GPS LED	Active low GPS LED driver (20mA	green-black
I	5v ref 1	0.5A Reference output	blue-black
K	Frequency in 3	5-12v input >2khz max (100k pulldown)	grey-black
L	Frequency in 4	5-12v input >2khz max (100k pullldown)	white-black
M	ADC4	0-25v 12 bit analogue input	brown
N	ADC3	0-25v 12 bit analogue input	red
O	Power LED	Active low Power LED driver (20mA)	orange
P	Low level RPM	5-15v Trigger - ECU or Tacho use	yellow
R	Logging LED	Active low Logging LED driver (20mA)	Green
S	Status LED	Active low Status LED driver (20mA)	blue
T	Frequency in 1	5-12v input >2khz max (100k pullldown)	gray
U	Frequency in 2	5-12v input >2khz max (100k pullldown)	white
