Connector And Wiring Loom Details

Connector Pinout

The pinout of CONN1 is shown below:

Figure 5: CONN1 (12 pole male Binder 723-series) pinout

Pin	Function
A	Ground (0v)
B	RS232 1 Tx (for connection to the data display)
C	Trigger
D	Not Used
E	RS232 2 Rx (for connection to a PC and/or optional serial printer)
F	RS232 2 Tx (for connection to a PC and/or optional serial printer)
G	Not Used
H	Not Used
J	+12v supply, approximately 450mA
K	RS232 1 Rx (for connection to the data display)
L	Not used
M	Not used

Wiring Loom Pinout

The wiring loom supplied with the BRAKEBOX contains a 12 pole female connector to connect to CONN1, a female BNC connector for the trigger input, 2 9-pin male D-sub connectors for RS232, and tinned wire for connecting to +12V DC supply. RS232-1 is to connect to the display, and RS232-2 is to connect to a serial printer and/or PC. The full pinout of the wiring loom is shown below:

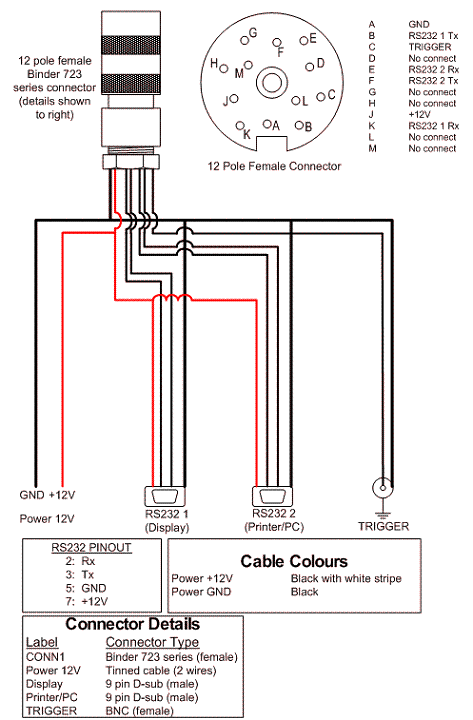

Figure 6: Full pinout of the wiring loom
