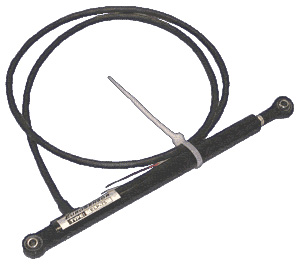

Miniature Linear Movement Sensor
Very high performance, compact linear sensors with a body diameter of just 9.5mm. Fully sealed and ideal for use on gearbox, throttle, suspension and steering sensing applications.
| Technical Data |
|---|
| Life expectancy | >25 million cycles |
| Maximum operational speed | 10 ms-1 |
| Environmental sealing | Ip65 |
| Temperature range | -30 to +100 °C |
| Cable type | 24 AWG Raychem 55 wire, braid. o.5M FDR 25 sleeve |
| Cable length (screened) | 500 mm |
| Independent Linearity | ±0.5% |
| Recommended wiper currrent | < 10 μA |
| Mechanical stroke | +1.5 mm of electrical stroke |
| Mounting hole diameter | 3 mm |
Travel / retracted distance between
mounting centres (all in mm) |
|---|
| 12.5 | 82.5 |
| 25 | 95 |
| 50 | 120 |
| 75 | 145 |
| 100 | 178 |
| 125 | 203 |
| 150 | 228 |
Installation
There are 3 leads that come from the sensor:
- Red lead should be attached to the +5v supply from the Data Logger Units
- Black lead should be connected to the ground connection on the Data Logger Units
- White lead should be connected to an analogue input
A user defined variable can be entered into the analysis software to convert the voltage into an actual displacement if required.
