VOB / Connections

VOB Connector Details

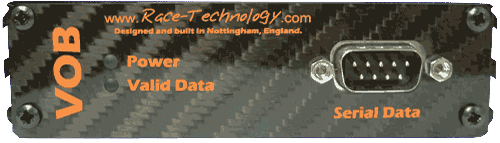

Front Panel

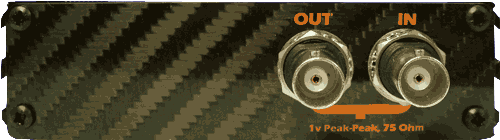

Back Panel

Fixed at a baud rate of 115200 baud for receiving information the standardised serial stream from our data logging products. Also used for re-flashing, diagnostics and configuration.

A connection to a DL1 is made with a straight-through 9-Way Female/Female Serial Cable.

PIN	DESCRIPTION
1	Not Used
2	TX RS232 Data Out
3	RX RS232 Data In
4	Not Used
5	GND
6	Not Used
7	+12v Supply In
8	Not Used
9	Not Used

Rear Panel Connectors

In	75Ω 0.7v pk-pk composite video
Out	75Ω 0.7v pk-pk composite video
