Variable and DBC Manager

Variable and DBC manager is the application that manages the variable and DBC information for V10 applications.

Variable and DBC file information for all v10 applications is stored in a single file and this information is shared between applications. The changes done to a DBC or RT variable will be instantly available to all other opened applications.

Using the Variable and DBC manager, you can do:

  • Change the default units (File -> Change default units)
  • Display the variables which are allowed for a given application (File -> Variables to show)
  • Change variable properties
  • Export and Import variable files (File -> Import a variable file, File -> Export a variable file)
  • Restore default variable information (File -> Restore default variable information)
  • Managing DBC files


Using Variable and DBC Manager

When you open the Variable and DBC Manager, the title bar shows the following information:

Variable and DBC manager - v10.x.x [{default units}#{Target Market}]

  • Default units
The units of measurement used by V10 applications. You can change the default units using "File -> Change default units" menu command.

  • Target market
Target market of the installed applications. Target market selection is an Installation option and you should uninstall and reinstall the V10 software package to change it. The list of applications and variables available will be different depending on the selected market.
  • Variables to show
Which subset of variables are currently being displayed. For more information see here.


Filtering variables based on the application

To see which variables are allowed for an application, select the menu item "File -> Variables to show -> {Application short name}"

The variable tree will be updated and the title bar will show the application you selected after the "target market"

Note:

  • Selecting File -> Variables to show -> All variables shows all RT variables managed by the application. (This shows variables available only in other markets as well as factory variables)
  • Selecting File -> Variables to show -> None set will reset the variable tree to its default state.


Changing the properties of variables

The variable manager allows you to edit the following properties of the variables:

  • Variable name, units, for example kph or mph for speed
  • minimum and maximum values
  • Advanced options: Calculus and Maximum rate of change


Changing the default units

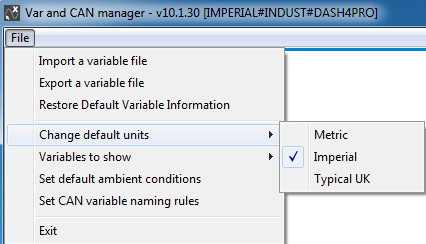

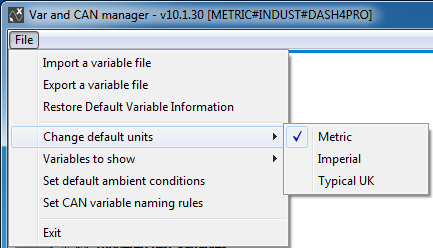

The system of measurement can be changed to "Metric", "Imperial", or "Typical UK" using the command File -> Change default units. The title bar of the application will be updated with the selected option.

->


Exporting and Importing Variable files

Using File -> Export a variable file command, you can save different versions of variable files with customized settings to disk/RT Cloud.

Use the File -> import a variable file command to load a file from the disk/RT Cloud.


Restoring default variable information

Use File -> Restore default variable information command to reset all the changes done to the varible information, to its default state.


DBC file management

What is a DBC file?

The DBC file type (also referred to as 'CANdb') was initially developed by Vector Informatik GmbH, but is now widely used as a standard for defining messages on the CAN data format.

The file is an ascii file that can be read in by analysis and used to decode the raw CAN messages.

Note that the Race Technology software has no facility to create or edit the DBC file, only load and use it. In many applications the DBC file will be supplied to the end user from the equipment supplier, alternatively there is a free toolset that can be used to generate and edit the files "CANdb editor", Race Technology Ltd do not supply or support this software, but it is freely available from the internet.

Note that from version 8.5.286+ analysis also support J1939 format CAN addresses.


Loading a DBC file

To load a DBC file, just click on any of the cells in the leftmost column ("add DBC" link), then select a DBC file. Finally select the Port from the drop down list


Select the Variables tab; DBC information file will be listed under the CAN node in the variable tree.
