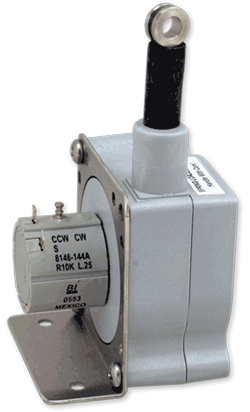

Basket (0) Steering Angle Sensor
Description
A high quality "string extension potentiometer" that senses the distance the wire is pulled from the sensor body. Ideal for sensing steering angle. With relatively non-critical alignment requirements, compact size, and ease of installation wire rope actuated transducers are the linear measurement system of choice.
Technical Data
| Input impedance | 1000 ±10% Ω |
| Maximum excitation voltage (AC or DC) | 25 v |
| Output impedance | 0-1000 Ω |
| Linearity | +-0.5% Full scale |
| Operating temperature | -15 to +60 °C |
| Extension | 635mm |
For further information on the steering angle sensor please visit our Knowledge Base here
