Universal OBD-II system

OBD-II System

Universal OBD-II system: This universal OBD-II system works with both serial and CAN OBD data formats. Most vehicles from 1996 onwards will have an OBDII port, this is however not guaranteed. The number of parameters available through the OBD port can vary between manufacturers.

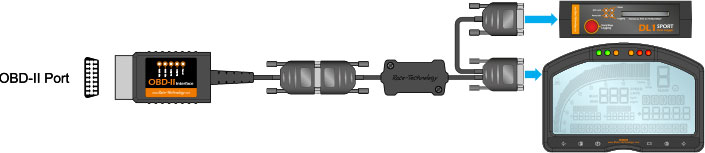

The system reads directly from the vehicle's OBD "On Board Diagnostics" port. The data available can then be logged by one of our data loggers and/or displayed with one of our displays.

*For further information on the Universal OBDII system please visit our Knowledge Base here

Typical OBD-II data channels:

  • Engine load
  • Water temp
  • Lambda 1 and 2
  • Lambda 1 and 2 short trim
  • Lambda 1 and 2 long trim
  • Fuel pressure
  • Manifold pressure
  • RPM
  • Ignition angle
  • Inlet air temp
  • Throttle position
  • Fuel level

It is worth noting that not all of these are available in all makes of cars, it depends on manufacturers how many channels are available through the OBDII port.



Please Note: Our physical ECU interfaces and OBD-II systems are only available for purchase with a data logger or dash, this is so we can supply the system configured before dispatch for a quick and simplified installation for our customrs. Built in ECU interface software licences for DL1 CLUB, DL1 PRO etc are available for individual purchase.

Main Product (GBP 165.00)

Summary

Main Product

Add-ons

* - Main product required.

Note: all prices are exclusive of VAT at 20.0%.
