Image control properties

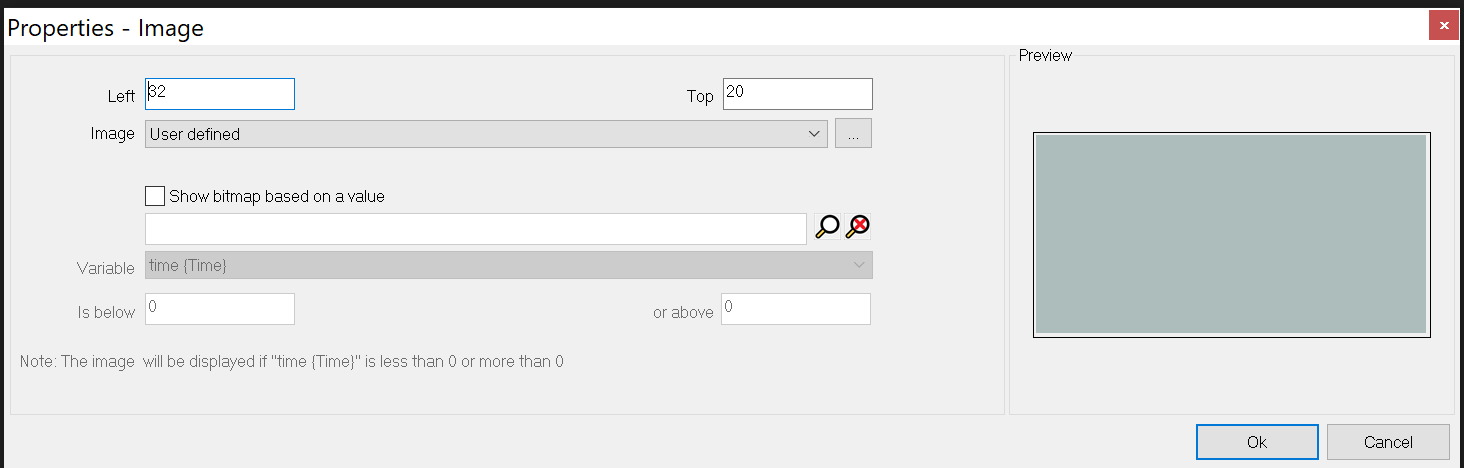

The Image control properties window will open when you choose to edit the properties of a ImageSimple Text control.
Once the window has been opened you will be able to customize the following properties:
This is the left coordinate of the control. The number entered in this box will specify the coordinates of the left hand side of the control.
This is the top coordinate of the control. The number entered in this box will specify the coordinates of the top edge of the control.
This is the image that you wish to display on the control. You can either select a pre-installed image or browse and select an image stored in a local disk. Image resolution should be less than 128*64 pixels.
This allows you to specify the font size of the text. You may choose from the following three sizes:
Tiny
Small
Medium
Large
Extra large
- Show bitmap based on a value
When this option is not selected, image that you have added to the control is always displayed. To display the image only during the time where a variable value falls within a some minimum and maximum, select this option, then select the variable and finally select the minimum and maximum values for the variable.
