VehicleInstallationKits / YamahaR1AndR6

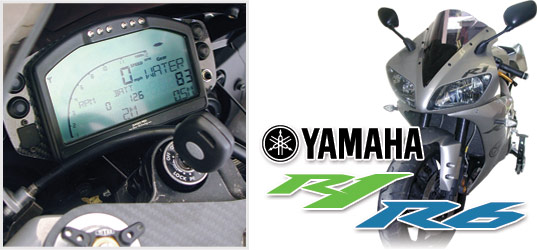

Yamaha R1 and R6 (R1 2002-3, R6 2002-4) - DASH2 PRO Installation Kit



Complete installation instructions can be downloaded from here: http://www.race-technology.com/upload/Instructions/Yamaha_R1_installation_instructions.pdf



  • Features Road and Race:
    • RPM scale and shiftlights - scale 0-8000 when water <40oC/0-12000 when water >40oC
    • Water temperature - with warning above 105oC and RPM is above 500
    • Gear (calculated)
    • GPS data logging with data download via USB

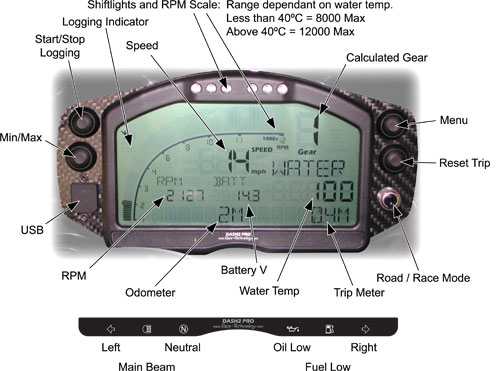

  • Road Mode: (menu item 5.2 - Test)
    • Odometer
    • Trip meter
    • Speed
    • Battery voltage

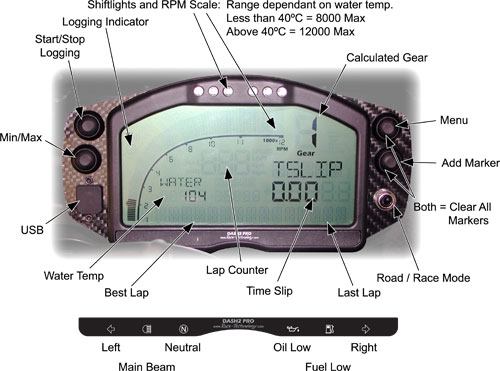

  • Race Mode: (menu item 5.2 - Race)
    • Time slip
    • Last lap time
    • Best lap time
    • Lap counter
  • Warning lights:
    • Left/right indicators
    • Main beam
    • Neutral light
    • Oil low
    • Fuel low
  • Button functions:
    • Start/stop logging
    • Down (in menu) Min/Max
    • Menu
    • Trip reset (road mode), add lap marker (race mode)
    • Menu+add lap marker = Clear all lap/sector markers (race mode)
