CANConfiguration / MappingCANDataToARTDataChannel

Mapping CAN data to a Race Technology data channel

This is done from the main screen on the CAN configuration section. Basic settings for the CAN bus such as the identifier length (11 or 29 bit) and bit rate are also set here.

For each channel which is used the following must be set.

  • Maximum rate of change [units per second]
This option limits the rate of change of the variable. The rate is limited at the output of the equation
  • Smoothing filter time [seconds]
This sets the length of time over which the data is filtered.
  • Calculus

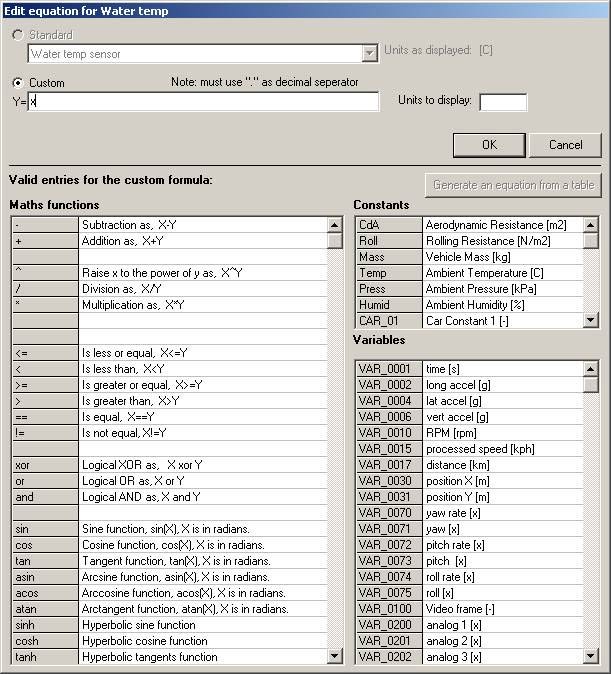

  • Input equation [V]
  • Map channel to
  • CAN configuration
  • Enabled/Disabled
