ECUType / MAZDAMX5-NDFrom2015

MAZDA MX5-ND


Compatibility


  • 2015 onwards


ECU configuration


No ECU configuration required.

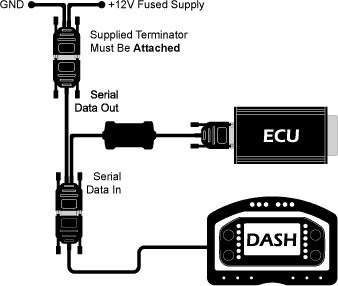

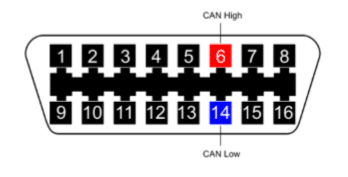

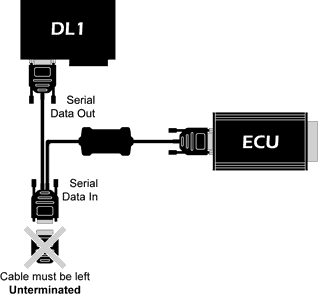

Connections

Note: Race Technology CAN interface only; Protocol requires OBD messages and direct CAN messages which is currently not available on DL1 or DASH2pro direct CAN inputs.


Data Channel listing

Variable file

  • Base variable files available in factory Race Technology V10 Cloud area.

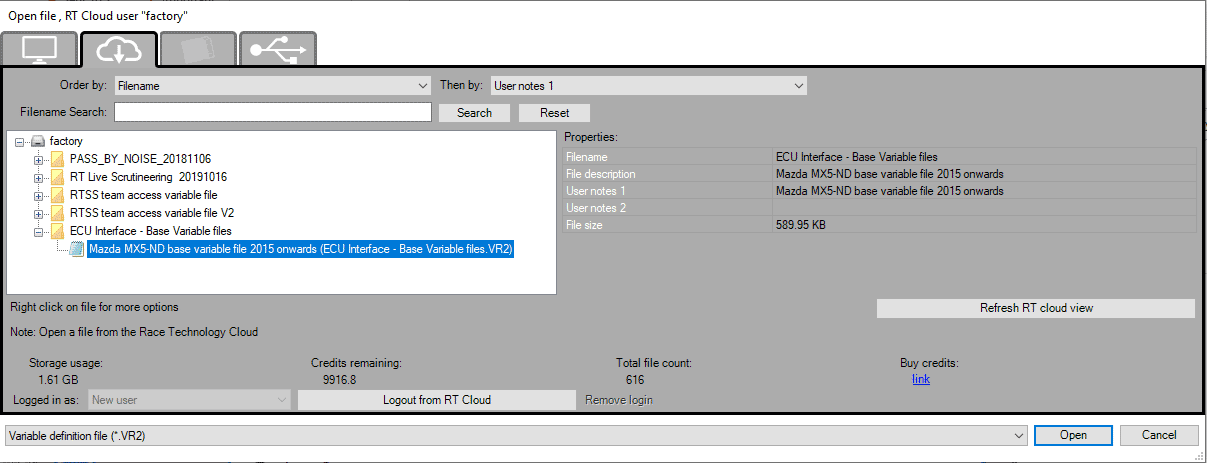

  • Variable files contain correct channel naming and units for ECU channels, it is strongly advised to load this into the Race Technology software. Open Variable Manager software from Race Technology program launcher > select .VR2 from the drop down box > type ECU into search bar > open ECU Interface - Base Variable files directory > Click the files and check user notes for vehicle make & model > select desired file then drag & drop onto desktop:

Open Var and CAN Manager from Race Technology program launcher > Load new variable file using File > Import a variable file:

ECU Message Name Race Technology Data Channel Resolution of Data
ECU_ENG_T Coolant temp (temperature 8) °C
ECU_RPM RPM (Engine RPM) rpm
ECU_PPS Throttle position (aux 1) 0.10%
ECU_TPS Lambda 1 short trim (aux 2) 0.10%
ECU_FUEL_FLOW Fuel inj 7 PW (aux 12) # .01
ECU_GEAR Fuel inj 8 PW (aux 13) #
ECU_WS_FL Fuel inj 1 cut (aux 14) km/h .1
ECU_WS_FR Fuel inj 2 cut (aux 15) km/h .1
ECU_WS_RL Fuel inj 3 cut (aux 16) km/h .1
ECU_WS_RR Fuel inj 4 cut (aux 17) km/h .1
ECU_OBD_FUEL_LEV Auxiliary 1 (aux 26) %
ECU_BRK_P Fuel aux temp comp (aux 30) Bar
ECU_STEER_ANG Steering angle (angle 3) Deg
ECU_OIL_P_SW Oil pressure (pressure 2) #
ECU_OBD_MAP Boost pressure (pressure 5) Mbar
ECU_OBD_AFR Lambda 1 (misc 1) lambda .001

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
