DASH2PROInstallation / OutputDrivers

Output Drivers

There are four optional output drivers for the DASH2 PRO, the connections for these are shared with the optional analogue inputs 5-8 which are part of the same option package

Pin No   Description Range Wire Colour
1 A Analogue input 5

Low side output 1

0-20v

500mA

Black
2 B Analogue input 6

Low side output 2

0-20v

500mA

Brown/Black
12 M Analogue input 8

Low side output 4

0-20v

500mA

Brown
13 N Analogue input 7

Low side output 3

0-20v

500mA

Red

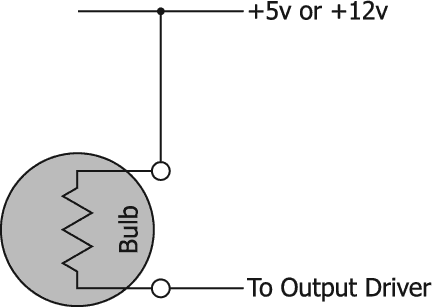

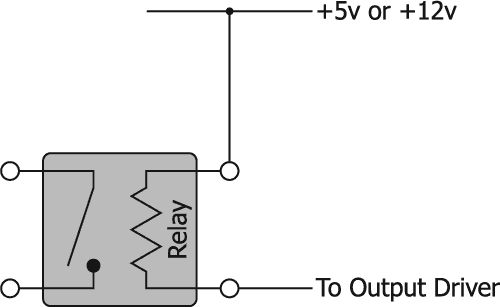

The output drivers are each capable of sinking up to 500mA and are designed to drive relays or lights which are connected to 5v or 12v. The outputs must be connected like this:
