RTConnectingHardware / DLx-ECU-DASHx

DL1, ECU, and DASH



Please note that in this configuration, you must ensure that your DL1 is correctly configures to work with a DASH display, there is more information here.

IMPORTANT:

  • For making a connection to an ECU, it's not always possible to plug in the ECU adapter directly to the ECU as not all ECU providers use standard pin outs on their connectors. Please refer to the ECU manufacturers documentation and our installation information. In particular, for CAN it is preferred to use the supplied d-type to fly lead adapter to connect the ECU's loom.

DL1, ECU, and Two DASH Displays

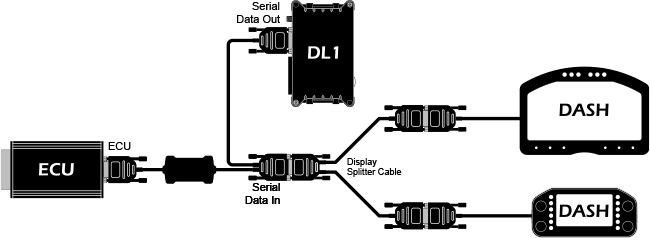

Using a Display Splitter Cable it is possible to connect two displays to a data logger, one will be a master display which has communications back to the data logger, the other will be a slave display which only receives information from the data logger.
