ECUType / EFIEuro6

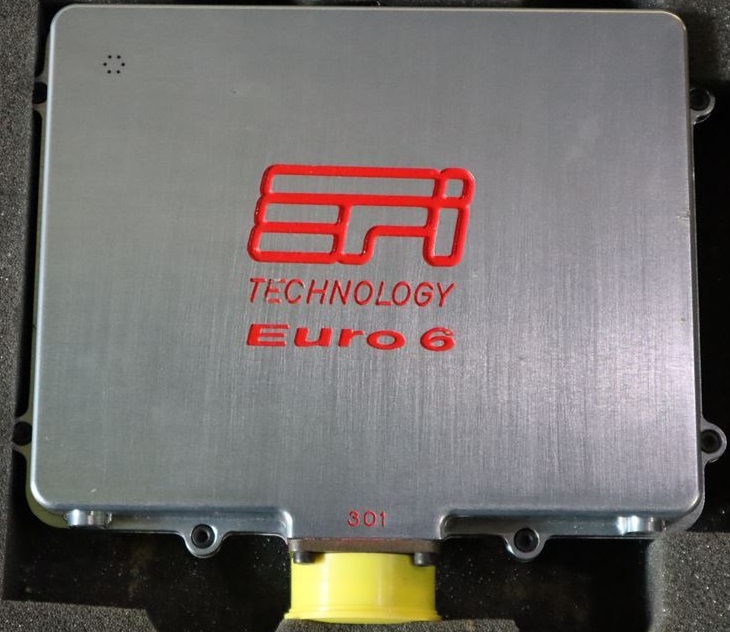

EFI Euro 6


Compatibility


  • Euro 6


Configuration


Euro-6 CAN data export, setting 2


Connections


This ECU should be connected via CAN connections:

  • Pin 55 - CAN High
  • Pin 70 - CAN Low


Data Channel Listing:

ECU Message Name Race Technology Data Channel Resolution of Data
RPM RPM (Engine RPM) 1 RPM
TH2O Coolant temp (temperature 8) 0.62 oC
Poil Oil pressure (pressure 2) 0.1 kPa
TOIL Oil temp (temperature 9) 0.62 oC
Pfuel Fuel pressure (pressure 3) 0.1 kPa
TFUEL Tyre 1 temp (temperature 12) 0.62 oC
Throttle Position Throttle position (aux 1) 0.39% (0-100)
MAP Boost pressure (pressure 5) 0.1 kPa
Tair Ambient air temp (temperature 1) 0.62 oC
NTK1 Lambda 1 (misc 1) 0.0078 lambda
Vbatt Battery voltage (misc 3) 0.0175V

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
