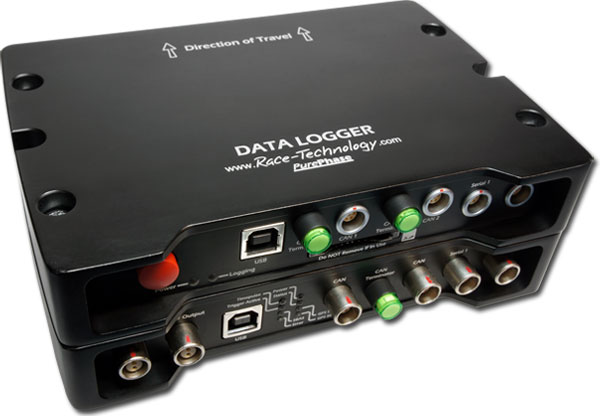

Lemo Connector Version (Special order)

A special order version of the Automotive Testing System is available (available in quantities of 5 and above). The differences between the standard system and the Lemo Connector Version are as follows:

  • All connectors (except GPS antennas) are Lemo brand connectors
  • The SPEEDBOX features a second serial port
  • Illuminated CAN termination buttons allows for quick and easy termination
  • Only “Power” and “Logging” lights on DATA LOGGER (not including “Status” and “GPS”)¬
  • Lower profile DATA LOGGER case makes for a more compact system

System Connections:

The system must be connected as shown in the diagrams below:

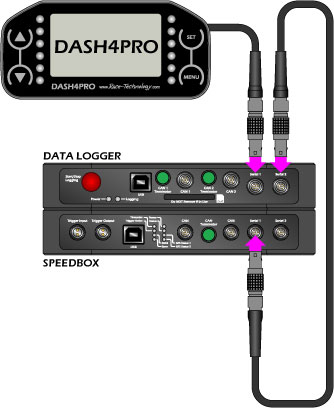

Front Connections

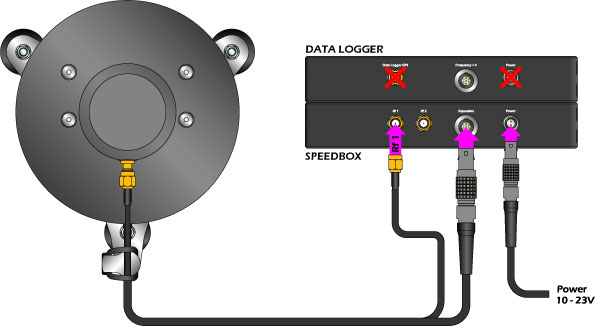

Rear Connections
