ECUType / GemsEVoXCAN

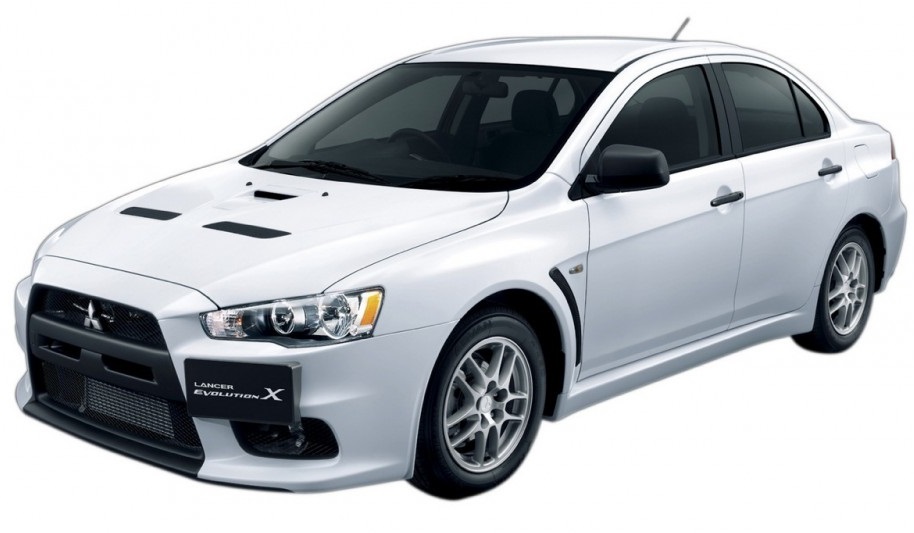

Gems EVo X CAN

Connections:

90 CAN high +
91 CAN low -

No ECU setup is needed.

Channel Listing:

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
Engine Speed	Engine RPM	RPM	VAR_0010	0.39 RPM
Vehicle speed	misc 4	Speed from the ECU	VAR_4003	1 MPH
Oil pressure	pressure 2	Oil pressure	VAR_3501	6.89475729 kPa
Coolant temp	temperature 8	Water temp	VAR_1007	1 ^oC
Oil temp	temperature 9	Oil temp	VAR_1008	2 ^oC
battery volts	misc 3	Battery voltage	VAR_4002	0.06V
Throttle	aux 1	Throttle position	VAR_2000	0.39%
Air temp	temperature 1	temperature 1	VAR_1000	1^oC
Lambda 1	misc 1	Lambda 1	VAR_4000	0.0078
MAP as LOAD	pressure 5	Boost pressure	VAR_3504	0.43%

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
