Haltech PS1000 / V1 / V2 / V2.35


Compatibility


  • Haltech Platinum Sport 1000 (PS1000) ECU
  • Haltech V1 CAN protocol (commonly used on Elite 1500 & 2500 series ECU)
  • Haltech V2 CAN protocol (commonly used on Elite 1500 & 2500series ECU)
  • Haltech V2.35 CAN protocol (commonly used on Elite 1500 & 2500 series ECU)

There multiple versions of the Haltech CAN protocol. The V1 protocol is present in all Haltech Platinum ECU’s to 08/02/11 firmware version 1.0 – 1.09. Starting from firmware versions 1.10 all Haltech Platinum ECUs will support V2, and all products that wish to interoperate with Haltech ECUs should support the V2 protocol. PS1000 ECU's with firmware 1.12 and newer supports Haltech V1 and V2 CAN output protocols. The CAN output version can be selected in the PS1000's ECU manager software under Main Setup -> Devices -> CAN Mode.

Configuration


Specific ECU configuration is not required, although the CAN protocol version output by the ECU must be known to configure the Race Technology equipment correctly. Note that not all CAN Packets will always be broadcast. The Haltech ECU may opt not to broadcast a particular packet if that feature is not enabled/used.


Connections


The PS1000 & Elite 1500 & 2500 series ECU should be connected via CAN connections. Connect the Race Technology equipment CAN High to the ECU's CAN High connection and same for CAN Low:

PS1000

CAN connections are located on the 8 pin rear connector:

CAN High - Pin 7

CAN Low - Pin 3

A 120 OHM terminating resistor connected between CAN High & CAN Low terminations may be required for some installations, where the ECU is located at the end of the CAN Bus. The ECU is equipped with an internal terminating resistor which can be enabled by fitting a wire link between pins 2 and 6 of the 8 pin connector.

(Please see example below, connector sold separately via Haltech Part # HT030003 - https://www.haltech.com/product/ht-030003-plug-and-pins-only-8-pin-black-tyco/)


Elite 1500 & 2500 Series

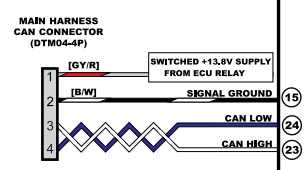

CAN connections are located on the respective universal wiring harness CAN connector:

CAN High - Pin 3

CAN Low - Pin 4


Data Channel listings


V1

ECU message Name Race Technology Data Channel Resolution of Data
RPM RPM (Engine RPM) 1 RPM
Road speed Auxiliary 1 (aux 26) 0.1 km/h
Oil Pressure Oil pressure (pressure 2) 10kPa
Coolant temp Coolant temp (temperature 8) 0.1c
Fuel pressure Fuel pressure (pressure 3) 10kPa
Battery voltage Battery voltage (misc 3) 0.01 Volts
Throttle position Throttle position (aux 1) 0.10%
Air temp Ambient air temp (temperature 1) 0.1c
Lambda Lambda 1 (misc 1) 0.001
Manifold pressure Boost pressure (pressure 5) 10Kpa
Oil temp Oil temp (temperature 9) 0.1c
Exhaust Gas Temp Exhaust 1 temp (temperature 17) 0.1c
Ignition advanced Ignition angle (angle 2) 0.1 degrees
Injector Duty Cycle Fuel inj 1 PW (aux 6) 1%
Gear Auxiliary 2 (aux 27) 0=netural 1=first etc

V2 & V2.35

ECU Message Name Race Technology Data Channel Resolution of Data
RPM RPM (Engine RPM) 1 RPM
Manifold pressure Boost pressure (pressure 5) 0.1kPa
Throttle position Throttle position (aux 1) 0.10%
Fuel pressure Fuel pressure (pressure 3) 0.1kPa
Oil pressure Oil pressure (pressure 2) 0.1kPa
Lambda Lambda 1 (misc 1) 0.001 Lambda
Brake pressure Coolant pressure (pressure 4) 1kPa
Wheel Speed front Auxiliary 1 (aux 26) 0.1km/h
Gear Auxiliary 2 (aux 27) 0=netural, 1=first etc
Battery voltage Battery voltage (misc 3) 0.1v
EGT1 Exhaust 1 temp (temperature 17) 0.1 Kelvin
Coolant temp Coolant temp (temperature 8) 0.1 Kelvin
Air temp Ambient air temp (temperature 1) 0.1 Kelvin
Oil temp Oil temp (temperature 9) 0.1 Kelvin
Gearbox temp Gearbox temp (temperature 10) 0.1 Kelvin

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
