ECUType / AEMInfinity


AEM Infinity

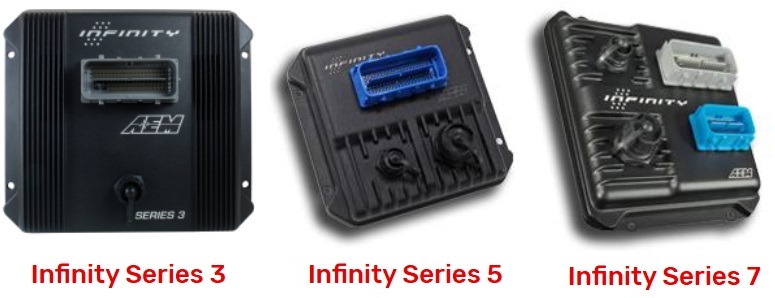

Compatibility


  • AEM Infinity Series 3
  • AEM Infinity Series 5
  • AEM Infinity Series 7



Configuration


ECU configuration not required.

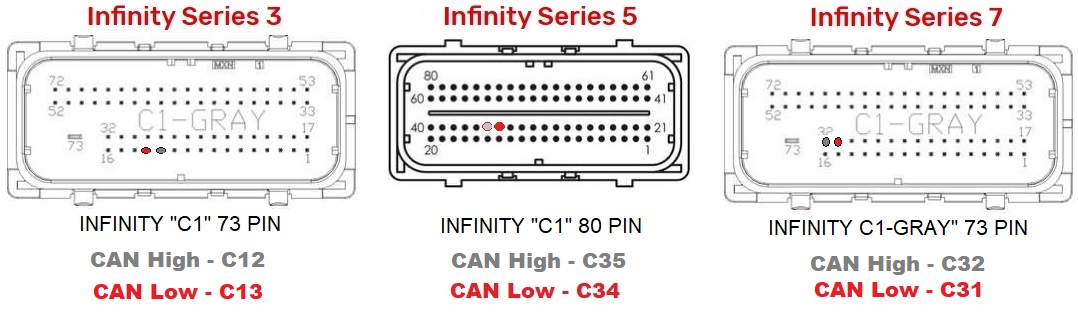

Connections


This ECU should be connected via CAN connections:


  • Connect Race Technology CAN High to AEM CAN + (High)
  • Connect Race Technology CAN Low to AEM CAN - (Low)



Data Channel Listing


ECU Message Name Race Technology Data Channel Resolution of Data
Engine Speed RPM (Engine RPM) 10 RPM
Ignition Timing Ignition angle (angle 2) 0.35
Air Temp Ambient temp (temperature 1) 0.1
Coolant Temp Coolant temp (temperature 8) 0.1
Throttle Throttle position (aux 1) 0.1%
Gear Calculated Auxiliary 1 (aux 26) 1
O2 #1 Lambda 1 (misc 1) 0.1 Lambda
O2 #2 Lambda 2 (misc 2) 0.1 Lambda
Battery Volts Battery voltage (misc 3) 0.01V
Vehicle Speed Speed from the ECU (misc 4) 0.1 KPH

Not all channels listed in the table above may be available from your ECU. The available data channels vary with the vehicle model, year of manufacture & connected sensors.
