RTConnectingHardware / DLx-IMU06

Connecting directly to a DL1 / DL2 data logger

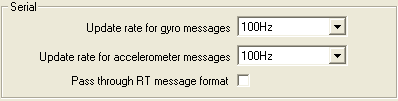

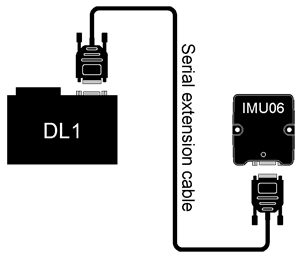

The IMU06 female d-type connector will plug directly in to the wiring loom of a DL2 or can be used with a straight through extension lead to connect directly to a DL1. In this case the IMU06 will receive power from the DL1/2. When using this installation, ensure that the Pass through RT message format option is disabled in the configuration.


In the DL1/2 configuration, ensure that the internal accelerometers are turned off for both storage to the memory card and to the serial port. Enable decoding of serial messages and logging of incoming serial data to the memory card.
