LegacySoftware / VideoOverlayConfiguration

Note:
New and improved set of applications is now available with the latest Race Technology V10 software download package for designing and customising the graphics overlays for GoPro video exports. For more information, check the following links:


Video Overlay Configuration (Legacy)


The "Video Overlay Configuration" is the software that you need to use to design the graphics overlay for the GoPro video recordings. The video overlay can be almost any combination of bitmaps, dials, bargraphs, digital displays, track maps, dynamic lines and simple texts. It is also possible to only show particular graphics under particular conditions making it very flexible and powerful.


Files generated from the Video Overlay Configuration have the VGL extension (Video Graphics Overlay). Note that a number of example layouts are also installed with the software. So it is not necessary to design your own unless you have an application that requires it. To access the example layout directories use the menu items - "File -> Load factory layouts" and "File -> Load HD factory layouts"


The software doesn't include any method of editing the bitmaps, that must be done on an external application and loaded in.

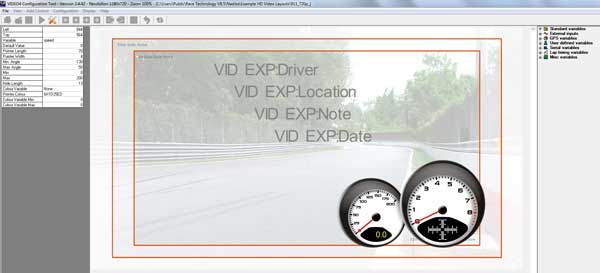

VIDEO Configuration Main Window

The Video Overlay Configuration main window comprises of the following items:
