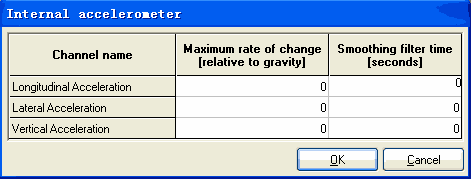

The DASH2 PRO has a 3 axis accelerometer, with either 2g or 6g maximum deflection. The accelerometer is configured by clicking on the ‘internal accelerometer’ option from the DASH2 PRO configuration software:
Filtering on the accelerometer channels is applied in the same way as for the analogue, frequency, and RPM inputs. The rate of change of the signal can be limited to stop any fast noise on the signal, the signal can also be filtered against time to give a smoother signal.
This concludes the section on setting up the internal and external sensors on the DASH2 PRO.
