Physically mounting the DASH4PRO

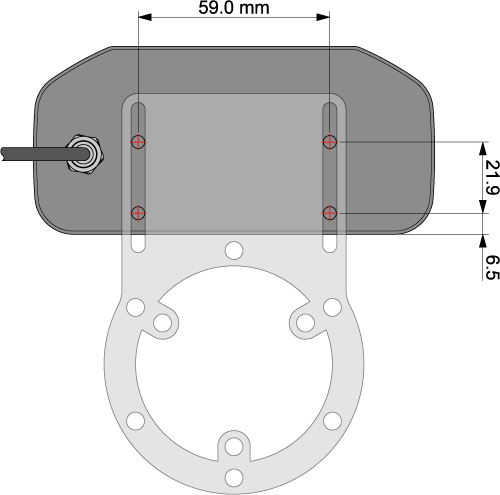

The DASH4PRO is designed to mount either on a steering wheel bracket or using the four blind holes on to a flat surface. There are 2 versions of the DASH4 PRO, one with an OLED, and one with an LCD display - they are both different sizes so see the correct diagrams below. Please see the diagrams below for hole dimensions and spacings: -

DASH4PRO / InstallingTheDASH4PRO

Installing the DASH4PRO

Physically mounting the DASH4PRO
