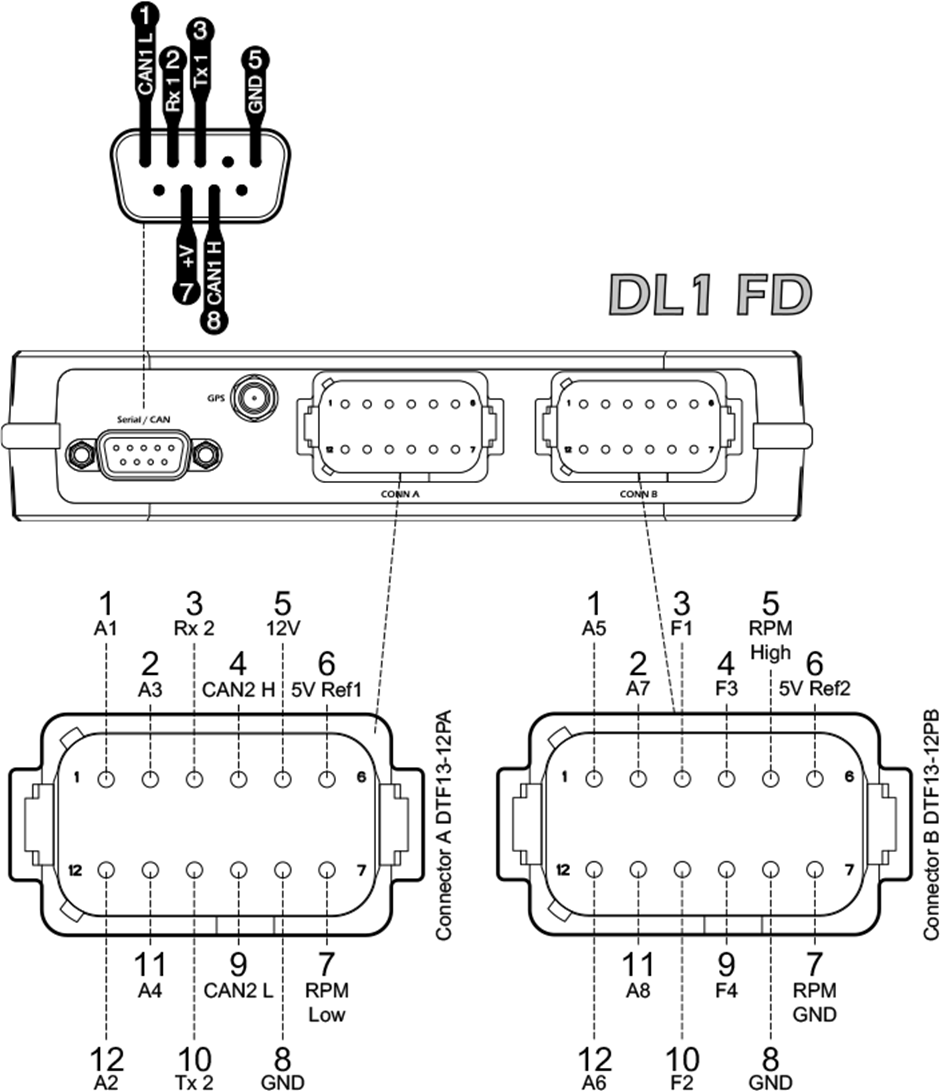

Rear
|
| A1
| Analogue input 1, for use with external sensors maximum input 25v.
|
| A2
| Analogue input 2, for use with external sensors maximum input 25v.
|
| A3
| Analogue input 3, for use with external sensors maximum input 25v.
|
| A4
| Analogue input 4, for use with external sensors maximum input 25v.
|
| A5
| Analogue input 5, for use with external sensors maximum input 25v.
|
| A6
| Analogue input 6, for use with external sensors maximum input 25v.
|
| A7
| Analogue input 7, for use with external sensors maximum input 25v.
|
| A8
| Analogue input 8, for use with external sensors maximum input 25v.
|
| GND
| Ground, recommended for grounding analogue sensors.
|
| Ground
| Ground, recommended for grounding analogue sensors.
|
| +5v1
| +5v output, maximum current output 1A. This can be used for powering external sensors
|
| +5v2
| +5v output, maximum current output 1A. This can be used for powering external sensors
|
| +12v Power
| ESSENTIAL! This is the power supply for the DL1 FD, it needs 10v-15v and about 150mA minimum. Details here.
|
| GND
| ESSENTIAL! This is the ground for the power supply to the DL1 FD. Details here.
|
| rL
| This is the "low level" rpm input that triggers about 5v - this MUST NOT be connected to the ignition coil. Details here.
|
| rH
| This is the "high level" rpm input that connects to the low voltage side of the coil. Details here.
|
| rG
| This is the ground for the "high level" rpm input that connects to an HT lead or the low voltage side of the coil. Details here.
|
| F1
| Frequency input 1, for connection to an external shaft or wheel speed. Triggers at 3v. Details here.
If the output driver or extra analogue input options are ordered, this input is Analogue input 9, for use with external sensors maximum input 25v. Low side driver output, maximum 0.5A
|
| F2
| Frequency input 2, for connection to an external shaft or wheel speed. Triggers at 3v. Details here.
If the output driver or extra analogue input options are ordered, this input is Analogue input 10, for use with external sensors maximum input 25v. Low side driver output, maximum 0.5A
|
| F3
| Frequency input 3, for connection to an external shaft or wheel speed. Triggers at 3v. Details here.
If the output driver or extra analogue input options are ordered, this input is Analogue input 11, for use with external sensors maximum input 25v. Low side driver output, maximum 0.5A
|
| F4
| Frequency input 4, for connection to an external shaft or wheel speed. Triggers at 3v. Details here.
If the output driver or extra analogue input options are ordered, this input is Analogue input 12, for use with external sensors maximum input 25v. Low side driver output, maximum 0.5A
|
| GPS rf +3.3v
| GPS antenna connection (gold SMA type). This feeds 3.3v out to the active GPS antenna and takes in the GPS rf signal.
|
| Data Port
| This single connector actually connects to 2 serial ports and a CAN port. One of the serial ports is generally used to connect to a display unit, such as a DASH2, the other to an ECU interface.
|
