DL1FD-DL2FDConfiguration / AutomaticLoggingControl

<< Previous, Flash card storage

Automatic logging control

The automatic logging control for the DL1 FD is selected from the Automatic logging control icon on the DL1 FD configuration software.

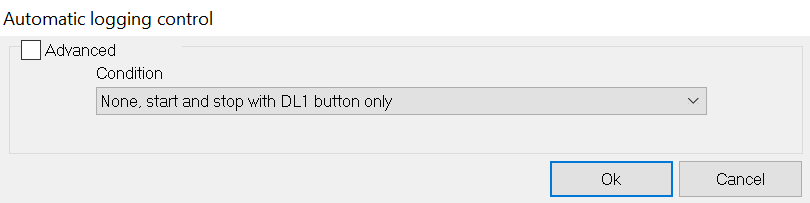

For basic logging control simply select the required option from the drop down list.

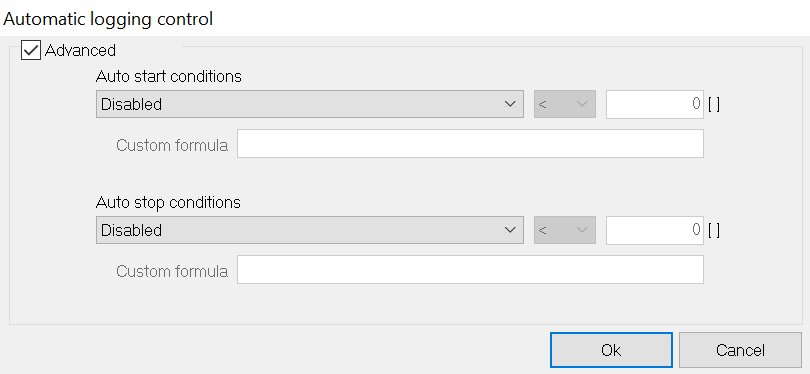

By clicking Advanced the options will be shown to have more complete control over the start and finish controls.

Here you can select any variable and a value for the variable which is required before logging will start or stop.
