Before starting

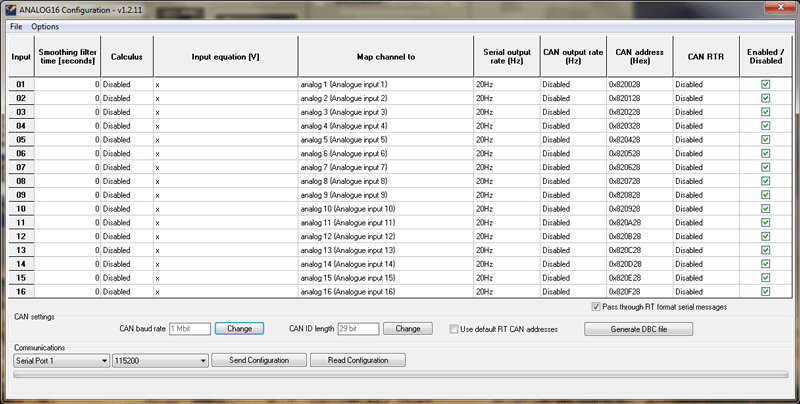

By default the ANALOG16 is configured to sample each of the 16 channels at 20Hz and output these on RS232 and CAN as shown here:
If the configuration needs to be changed this can be done in one of two ways
1. By connecting to a PC through a Race Technology USB / Serial interface
|

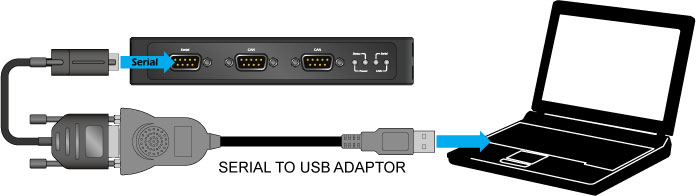

| ANALOG16 unit with USB/Serial interface, connected to PC
|
2. By connecting to a PC through the USB port of an attached Race Technology product
|
|

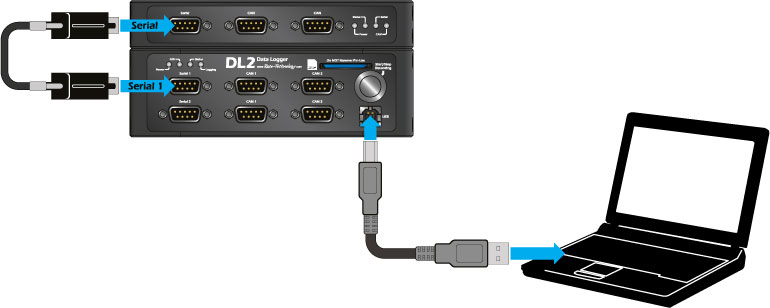

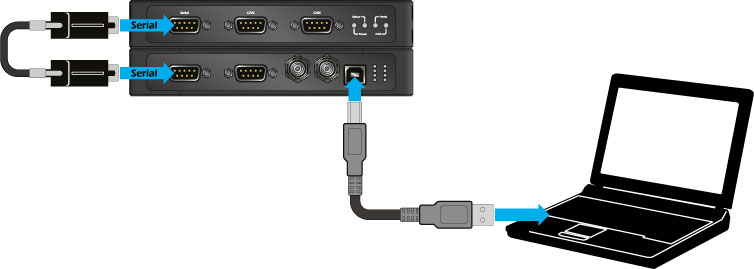

| ANALOG16 unit connected with SPEEDBOX/DL2 via RS232 and USB connector to PC
|
Information on changing the configuration of the unit can be found here.
