Throttle Angle Sensor

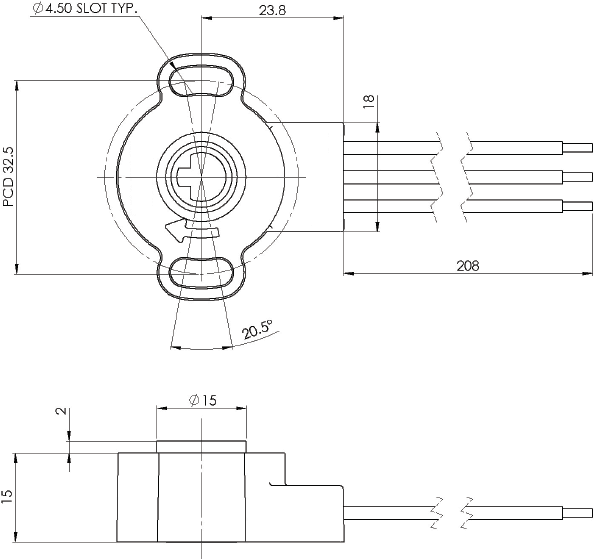

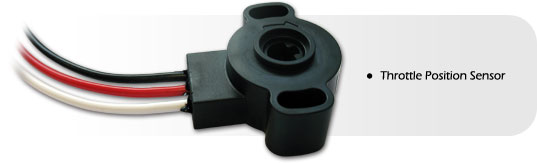

Rotary position sensor specifically designed for sensing throttle position. 106� position sensor spring returned clockwise when viewed from above. M3 set screw fixing. Hollow rotor allows insertion of a �D� profile shaft from either side to give clockwise/anticlockwise spring biasing. Technical Data Resistance 5000 (linear �20%) Ω Linearity �2% over 100� Maximum power 1 (at 40�C derates to 0 at 135�C) W Rotation Mechanical 130 / Electrical 106 � Mechanical life 106 full cycles, 6*106 2� dither Lead length 0.2 m Installation

There are 3 leads that come from the sensor: the red lead should be attached to the +5v supply from the Data Logger Units, the black lead should be connected to the ground connection on the Data Logger Units and the white lead should be connected to an analogue input. A user defined variable can be entered into the analysis software to convert the voltage into an actual angle if required.
