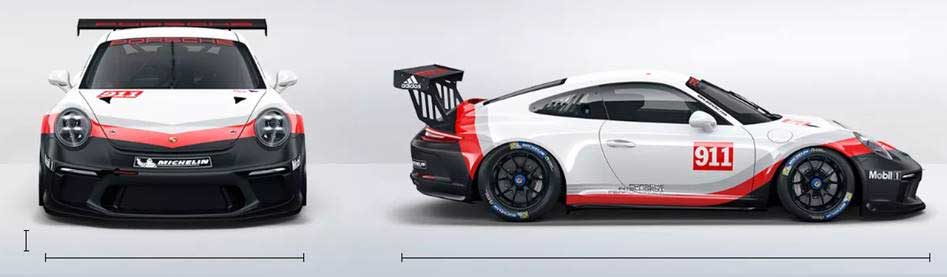

Porsche - 991 GT3 Gen2
INFO
Compatible with RT live, RTSS, DL1 CLUB/PRO, DASH2pro

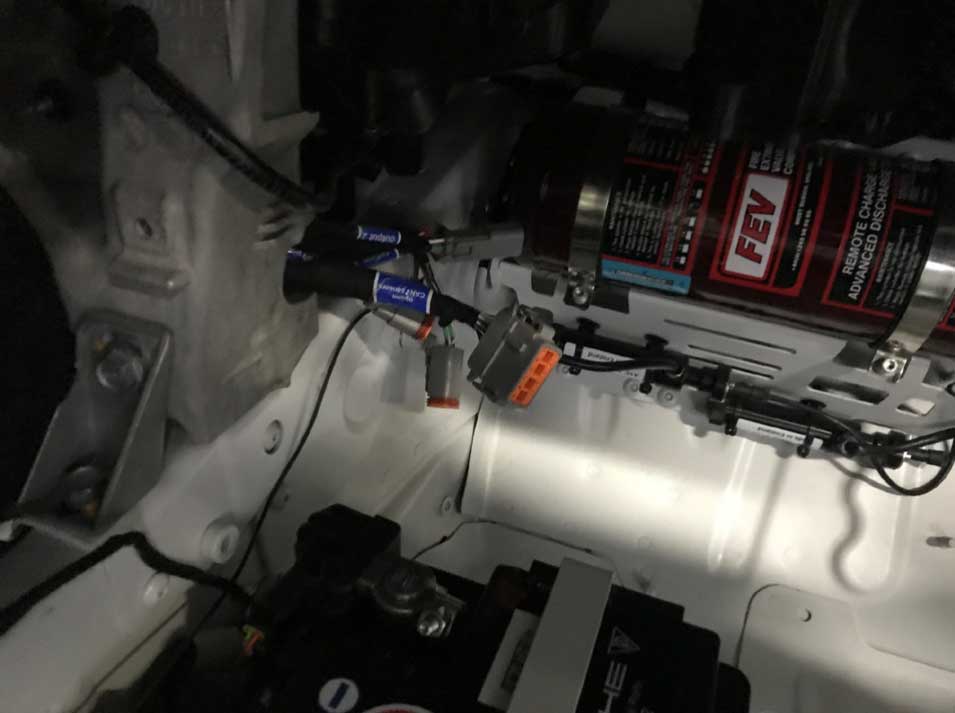

Connections

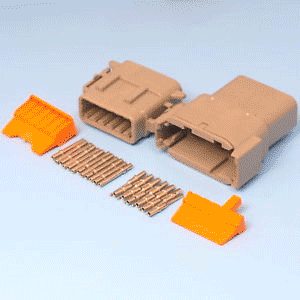

Deutsch DTM Series 12 Pin Way Connector Male DTM04-12PA required - Available from Race Technology:
ECU configuration
No ECU configuration required
Channel listing
| ECU Name
| Race Technology message
| Race Technology Default name
| Race Technology VAR number
| Resolution
|
| ECU_RPM
| frequency 1
| Engine speed (ECU)
| VAR_1500
| rpm
|
| ECU_Gear
| aux 13
| Fuel inj 8 PW
| VAR_2012
| #
|
| ECU_Throttle
| aux 2
| Lambda 1 short trim
| VAR_2001
| 0.10%
|
| ECU_BrkF
| aux 30
| Fuel aux temp comp
| VAR_2029
| kPa
|
| ECU_Asteer
| angle 3
| Steering angle
| VAR_3002
| deg
|
| ECU_YawRate
| yaw rate
| yaw rate
| VAR_0070
| deg/s
|
| ECU_Speed
| misc 4
| Speed from the ECU
| VAR_4003
| km/h .1
|
| ECU_WheelFL
| Aux 14
| Fuel inj 1 cut
| VAR_2013
| km/h .1
|
| ECU_WheelFR
| Aux 15
| Fuel inj 2 cut
| VAR_2014
| km/h .1
|
| ECU_WheelRL
| Aux 16
| Fuel inj 3 cut
| VAR_2015
| km/h .1
|
| ECU_WheelRR
| Aux 17
| Fuel inj 4 cut
| VAR_2016
| km/h .1
|
| ECU_BrkR
| Aux 32
| Auxiliary 32
| VAR_2031
| kPa
|
| ECU_FuelLev
| Aux 3
| Lambda 2 short trim
| VAR_2002
| l .1
|
| ECU_BrkR
| Aux 4
| Lambda 1 long trim
| VAR_2003
| #
|
| ECU_Lam
| misc 1
| Lambda 1
| VAR_4000
| lambda .001
|
| ECU_Lam2
| misc 2
| Lambda 2
| VAR_4001
| lambda .001
|
| ECU_MapPos
| Aux 26
| Auxiliary 1
| VAR_2025
| #
|
| ECU_PAmb
| pressure 1
| Ambient air pressure
| VAR_3500
| mbar
|
| ECU_PFuel
| pressure 3
| Fuel pressure
| VAR_3502
| bar .1
|
| ECU_PRail
| pressure 2
| Oil pressure
| VAR_3501
| bar
|
| ECU_PRail2
| pressure 4
| coolant pressure
| VAR_3503
| bar
|
| ECU_TPSPad
| Aux 1
| Throttle position
| VAR_2000
| %
|
| ECU_TInt
| temperature 16
| ECU temp
| VAR_1015
| °C
|
| ECU_FuelCons
| Aux 12
| Fuel inj 7 PW
| VAR_2011
| l .1
|
| ECU_TMot
| temperature 8
| coolant temp
| VAR_1007
| °C
|
| ECU_AccX
| long accel
| long accel
| VAR_0002
| g .1
|
| ECU_AccY
| lat accel
| lat accel
| VAR_0004
| g .1
|
| ECU_AccZ
| vert accel
| vert accel
| VAR_0006
| g .1
|
| ECU_LapNum
| Aux 40
| Auxiliary 40
| VAR_2039
| #
|
| ECU_LapTime
| Aux 41
| Auxiliary 41
| VAR_2040
| 0.1 s
|

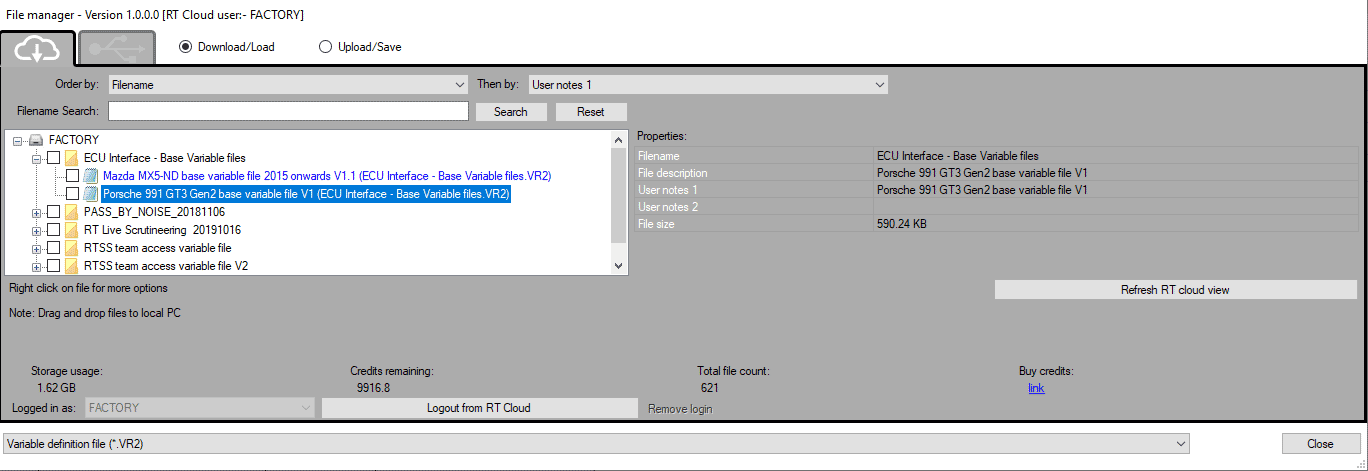

Variable file
Base variable file available in factory Race Technology V10 cloud area.
- Variable file contains correct channel naming and units for ECU channels. Open variable manager software and load new variable from menu.

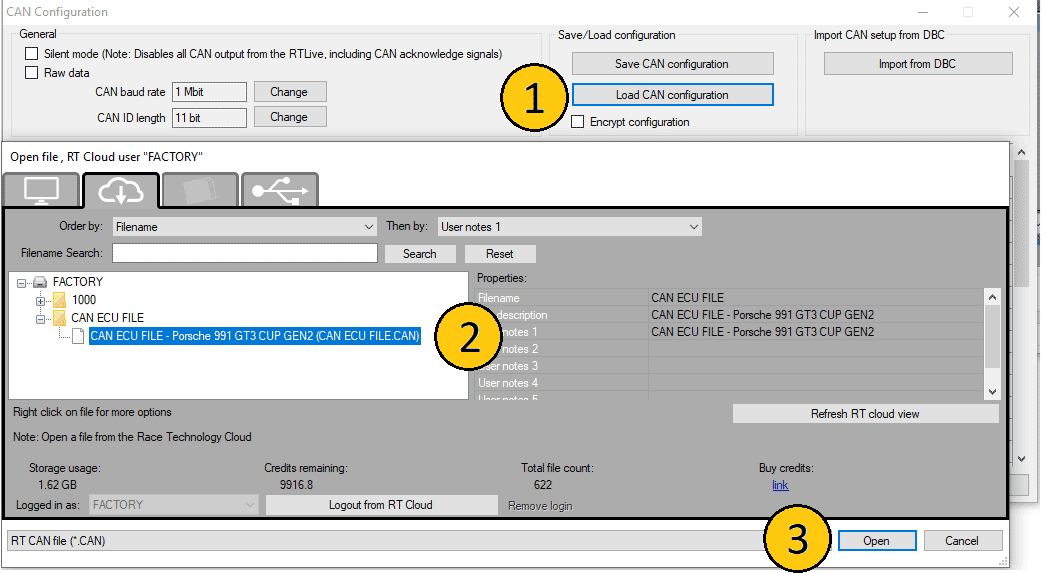

CAN configuration
File available on the cloud.
