ConnectingHardware / DLx-IMU06-DASHx

Connecting to DL1 with DASH2

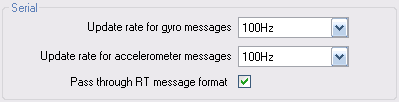

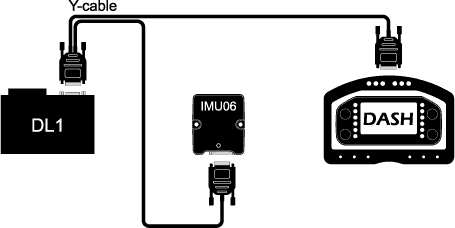

A Y-cable is required to connect the IMU06 to multiple units. When using this installation, ensure that the “Pass through RT message format” option is enablled in the configuration.



If additional ECU interfaces or CAN adapters are used in conjunction with the IMU06, they can be daisy chained on either side of the unit.

In the DL1/2 configuration, ensure that the internal accelerometers are turned off for both storage to the memory card and to the serial port. Enable decoding of serial messages and logging of incoming serial data to the memory card and transmission to the serial port.
