Changing the shift light brightness

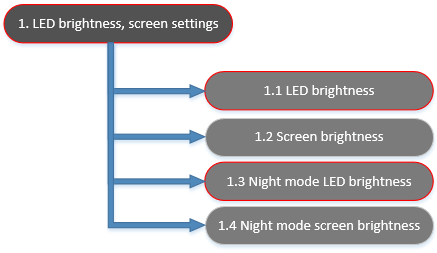

1.1 LED brightness

1.3 Night mode LED brightness

The brightness of the shift lights can be changed to suit personal preference.

1. Navigate to the menu item "1.1 LED Brightness" or "1.3 Night mode LED brightness" and press SET. The shift lights will then be illuminated at the current brightness setting.

2. Use the UP and DOWN buttons to move the on screen slider and adjust the brightness to the desired level.

3. Press SET to save the brightness setting. The DASH4PRO FD will return back to the normal display mode.
