ECUType / Adaptronic

Adaptronic

Adaptronic from firmware version 12 have now made the option available to output Race Technology format data. This means you can connect the ECU to any Race Technology DASH or datalogger without the need of an interface to decode the data to Race Technology format. Adaptronic also have online page offering a full explanation.

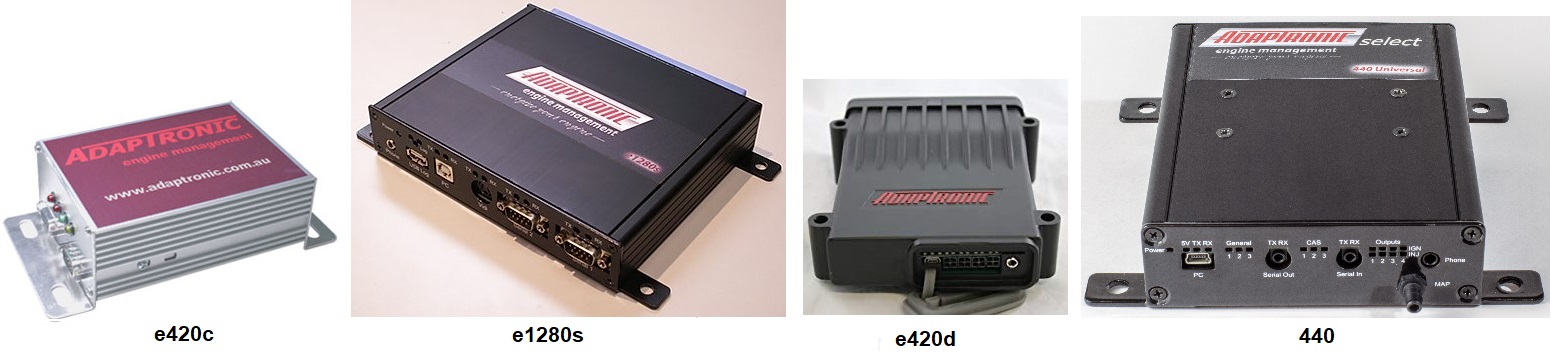

ECU Connections:

  1. e420c
  2. first build e1280s
  3. second build e1280s
  4. third build e1280s
  5. Select ECU (e420d, 440 or plug-in)

(1) and (2) have a D9 female connector, so this plug straight into the Race Technology serial adaptor - no adaptors / wiring necessary. You use the port that you would normally use to connect to the laptop.

(3) has a 4 -pin Mini-DIN - (the port is labelled "Vidi" on the ECU). Note that you can't use this port and the USB connection at the same time.


(4) and (5) have a stereo 2.5mm connector (mini headphone). Use the "serial out" port (not the "serial in" port). You can buy a premade cable from Innovate Motorsports in the US - the part number is 3746 (Program Cable: LC-1, XD-1, Aux Box to PC) - which is a 2.5mm cable to D9 female cable. This plugs into the Race Technology DASH or datalogger serial port connector directly if the ECU is running firmware version 12 or later. If you are using an older version of firmware the an interface is needed.

  • Note that you can't use this port and the USB connection at the same time.


ECU configuration:

e420c and Select ECUs (e420d, 440, and the plug-ins) - none required.

For the e1280s, you must be using firmware version 3.039 or later. Then go into "dedicated functions" -> "General" and configure the serial output variables below.


Channel Listings (for systems using an ECU Interface):

The Adaptronic ECU should be set to output data at 57.6 kbaud.

ECU Name

Race Technology message Race Technology Default name Race Technology VAR number Resolution

Engine RPM

Engine RPM RPM VAR_0010 25 RPM

Temperature 1

temperature 1 temperature 1 VAR_1000 0.1 oC

temperature 8

temperature 8 Water temp VAR_1007 0.1 oC

temperature 25

temperature 25 Aux 1 VAR_1024 0.1 oC

aux 1

aux 1 Throttle position VAR_2000 0.1%

aux 2

aux 2 Lambda 1 short trim VAR_2001 0.1%

measured time 1

measured time 1 Fuel inj 1 PW on VAR_2500 1ms

measured time 2

measured time 2 Fuel inj 2 PW on VAR_2501 1ms

measured time 3

measured time 3 Fuel inj 3 PW on VAR_2502 1ms

measured time 4

measured time 4 Fuel inj 4 PW on VAR_2503 1ms

angle 2

angle 2 Ignition angle VAR_3001 0.1o

pressure 5

pressure 5 Boost pressure VAR_3504 1 mBar

misc 1

misc 1 Lambda 1 VAR_4000 0.01 lambda

misc 3

misc 3 Battery voltage VAR_4002 0.01v


Channel Listings (for direct ECU connection)

ECU name

Race Technology message

Race Technology Default name

Race Technology VAR number

Resolution

Lambda

misc 1

Lambda 1

VAR_4000

0.01 Lambda

Battery voltage

misc 3

battery voltage

VAR_4002

1mV

TPS

aux 1

Throttle position

VAR_2000

0.10%

Lambda trim

aux 2

Lambda 1 short trim

VAR_2001

0.10%

Ignition cut

aux 22

Ignition cut

VAR_2021

0.10%

External in

aux 29

Auxilary 4

VAR_2028

0.1

Trim

aux 30

Fuel aux temp comp

VAR_2029

0.10%

Air temp (MAT)

temperature 1

ambient air temp

VAR_1000

0.1c

Coolant temp (ECT)

temperature 8

water temp

VAR_1007

0.1c

EGT 1 (viaTC4)

temperature 17

Exhaust 1 temp

VAR 1016

1c

EGT 2 (viaTC4)

temperature 18

Exhaust 2 temp

VAR 1017

1c

EGT 3 (viaTC4)

temperature 19

Exhaust 3 temp

VAR 1018

1c

EGT 4 (viaTC4)

temperature 20

Exhaust 4 temp

VAR 1019

1c

Aux temp

temperature 25

Aux 1

VAR_1024

0.1c

Oil pressure (via SSI4)

pressure 2

Oil pressure

 VAR_3501

1mbar

Fuel pressure (via SSI4)

pressure 3

Fuel pressure

VAR_3502

1mbar

Aux pressure (via SSI4)

pressure 4

water pressure

VAR_3503

1mbar

MAP

pressure 5

Boost presure

VAR_3504

1mbar

Injector 1 duration

measured time 1

Fuel inj 1 PW on

VAR_2500

1ms

Injector 2 duration

measured time 2

Fuel inj 2 PW on

VAR_2501

1ms

Injector 3 duration

measured time 3

Fuel inj 3 PW on

VAR_2502

1ms

Injector 4 duration

measured time 4

Fuel inj 4 PW on

VAR_2503

1ms

Igniton 1 angle (leading)

angle 2

Ignition angle

VAR_3001

0.1 degrees (BTDC)

RPM

frequency 1

RPM

VAR_0010

1 RPM

Speed

Speed

Speed

VAR_0015

0.1 Km/h
