ECUType / HONDACTRFD2

Honda Civic Type R (FD2)

Supported Models

Honda Civic Type R FD2 2006 � 2011

Connection

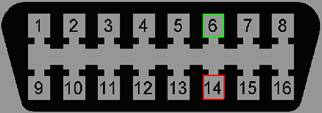

Connection to the ECU should be made through the vehicles OBDII port.

PIN 6 � CAN high

PIN 14 � CAN Low

Race Technology CAN connections

Configuration

No ECU configuration required.

Channel Listing

ECU name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
HO_RPM	RPM	Engine RPM	VAR_0010	1
HO_VEH_SPEED	Misc 4	Speed from ECU	N/A	km/h .1
HO_TPS	Aux 1	Throttle Position	VAR_2000	1%
HO_PPS	Aux 4	Lambda 1 Long Trim	VAR_2003	1%
HO_ECT	Temperature 8	Water Temperature	VAR_1007	1�C
HO_IAT	Temperature 2	Inlet Pre Turbo 1	VAR_1001	1�C
HO_BRAKE_SW	Aux 2	Lambda 1 Short Trim	VAR_2001	Raw Value
HO_ENG_IGN_RET	Aux 3	Lambda 2 Short Trim	VAR_2002	1deg
HO_WH_SPD_FL	Aux 5	Lambda 2 Long Trim	VAR_2004	km/h .1
HO_WH_SPD_FR	Aux 6	Fuel Inj 1 PW	VAR_2005	km/h .2
HO_WH_SPD_RL	Aux 7	Fuel Inj 2 PW	VAR_2006	km/h .3
HO_WH_SPD_RR	Aux 8	Fuel Inj 3 PW	VAR_2007	km/h .4
