Connections
Front panel - RT LIVE v2 Industrial and Motorsport
9 way d-type
| 1
| CAN Low
|
| 2
| RS232 1 Rx
|
| 3
| RS232 1 Tx
|
| 4
| RS232 2 Tx
|
| 5
| Ground
|
| 6
| RS232 2 Rx
|
| 7
| Power output
|
| 8
| CAN High
|
| 9
| NC
|
RT LIVE v2 INDUSTRIAL
Rear panel

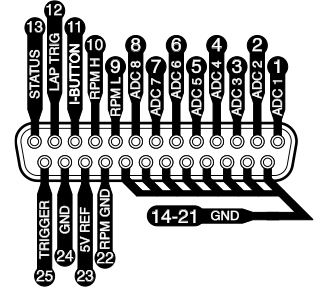

25 way d-type
Power connector
LEMO 2 pin connector part number FGG.0B.302.CLAD52Z
| Power Connector pinout details
|
| Pin
| Function
|
| 1
| +ve
|
| 2
| GND
|

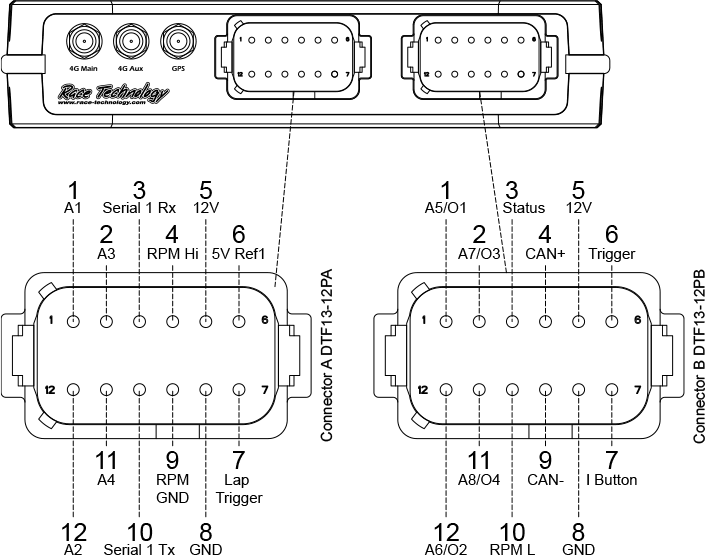

RT LIVE v2 Motorsport
Rear panel
A = Analog input
O = low side driver output
Conn A
| 1
| A1
|
| 2
| A3
|
| 3
| RS232 Rx
|
| 4
| RPM Hi level
|
| 5
| 12V power in
|
| 6
| 5v sensor supply
|
| 7
| Lap trigger
|
| 8
| GND
|
| 9
| RPM Hi level Gnd
|
| 10
| RS232 Tx
|
| 11
| A4
|
| 12
| A2
|
Conn B
| 1
| A5 O1
|
| 2
| A7 O3
|
| 3
| Status
|
| 4
| CAN Hi
|
| 5
| 12V power in
|
| 6
| Trigger
|
| 7
| I button
|
| 8
| GND
|
| 9
| CAN Low
|
| 10
| RPM Low level
|
| 11
| A8 O4
|
| 12
| A6 O2
|
