VideoSoftwareUtilities / AdvancedOverlayEditor

Advanced overlay editor

Introduction

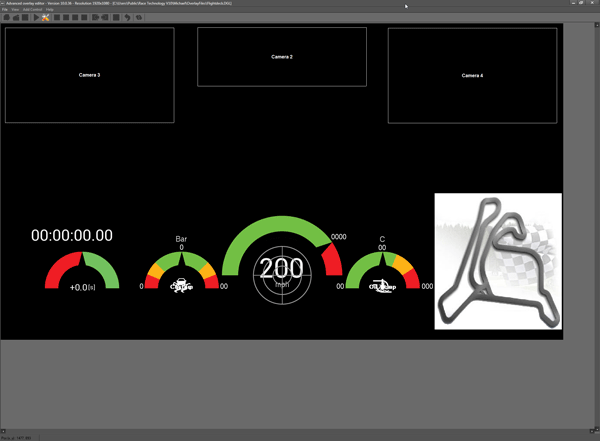

The Advanced Overlay Editor is a fully configurable application for designing data overlays and dashboard layouts. The software is suitable for factory or advanced users to create overlays with any combination of graphics, text, formulas, conditional statements, dynamic variable and unit names.

Supported overlay resolutions

1920x1080

Select this resolution to create video overlays for Analysis video export

800x480

Virtual dashboard layouts for Analysis and Live monitor

1024x600

Reserved for products under development.

You can create re-configurable (customisable) overlays using the Advanced Overlay Editor. Customisation helps you to use a single overlay file for different uses by configuring the visual and functional characteristics of your overlays using the related �customisation applications� which allows simple, intuitive and quick customisation of overlays.

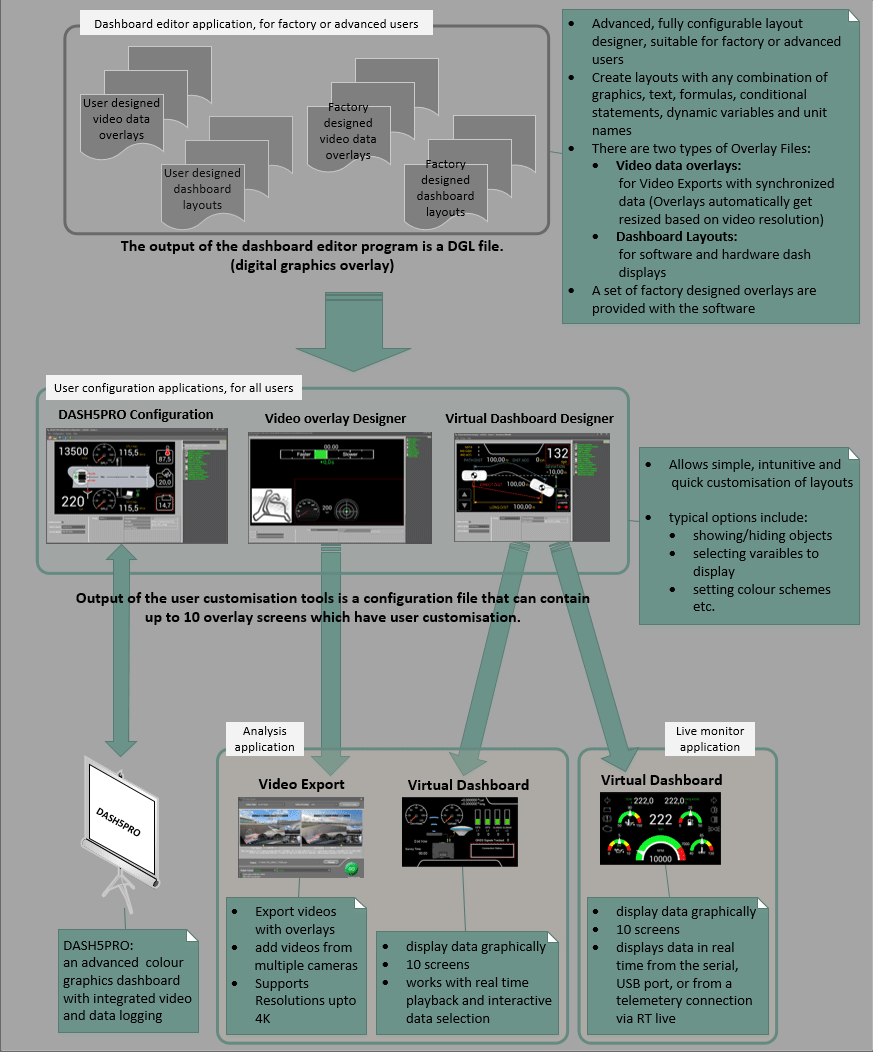

The following diagram shows the connections between Advanced Overlay Editor, customisation applications, and applications that uses the customised overlays.
(Note: To open the knowledge base articles associated with the related applications, click on the relevant areas on the map)
